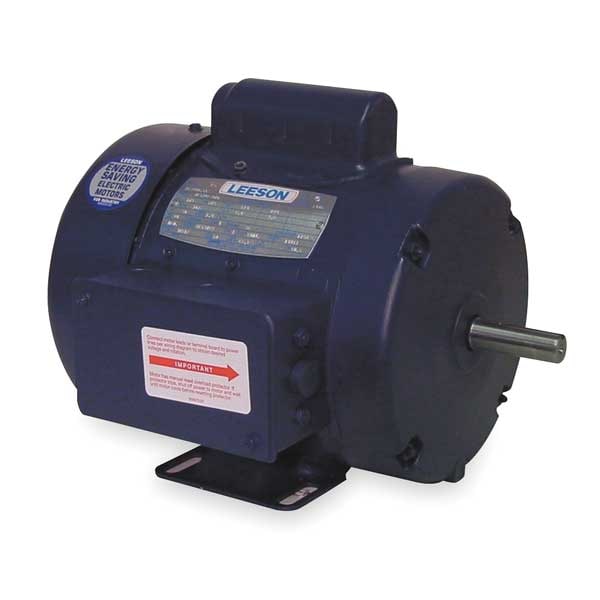

Leeson 50 Hz Motor, 1/3 HP, 1425,110/220v, 56, TEFC 113908.00 - main

50 Hz Motor, 1/3 HP, 1425,110/220v, 56, TEFC

  • Mfr # 113908.00

  • Zoro # G2363751

product price: $430.99
/ea
Sold in multiples of 3 for $1,292.97
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56
Phase
Single
Motor Thermal Protection
Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
113908.00
Zoro #
G2363751
UPC #
691720012734
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Length Less Shaft
9 1/4 in
Overall Length
11 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56
Phase
Single
Motor Thermal Protection
Manual
Motor Mounting Type
Rigid Base
Full Load Amps
6.4/3.2 A
Hz
50 Hz
Motor Bearings
Ball
Ins. Class
B
Motor Service Factor
1
RPM Range
1,401-1,500
Motor Shaft Design
Keyed
Ambient Temperature
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Application
General Purpose
No. of Speeds
1
Motor Mounting Position
Horizontal
Voltage Compatibility
110/220-230V AC, 110/220V AC
Item
50 Hz Motor
Nominal Efficiency
65.3 %
Max. Ambient Temp.
40 Degrees C
Full Load Amps @ 50Hz
6.4/3.2 A
Usable @ 200V
Not Usable at 200V
Voltage @ 50Hz
110/220V AC
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
HP @ 50Hz
1/3 hp
Standards
CE Certified, CSA Certified, UL Listed
Weight
23 lb
Motor Frame Material
Steel
RPM @ 50Hz
1,425 RPM
Service Factor @ 50Hz
1
NEMA Design
None

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 6.4/3.2 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
