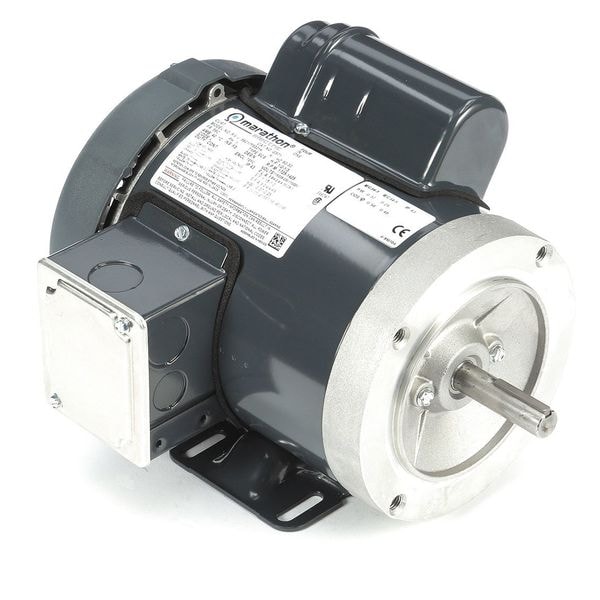

Capacitor-Start General Purpose Motor, 1/2 hp HP, 115/208-230V AC Voltage, 56C Frame
Mfr # 056C17F5321
Zoro # G0473840
product price: $386.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
056C17F5321
Zoro #
G0473840
UPC #
-
Country of Origin
Mexico
Dimensions
Manufacturers Warranty Length
1 yr
Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Overall Length
11 7/8 in
Length Less Shaft
9 3/4 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 8.8/4.4-4.2 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
