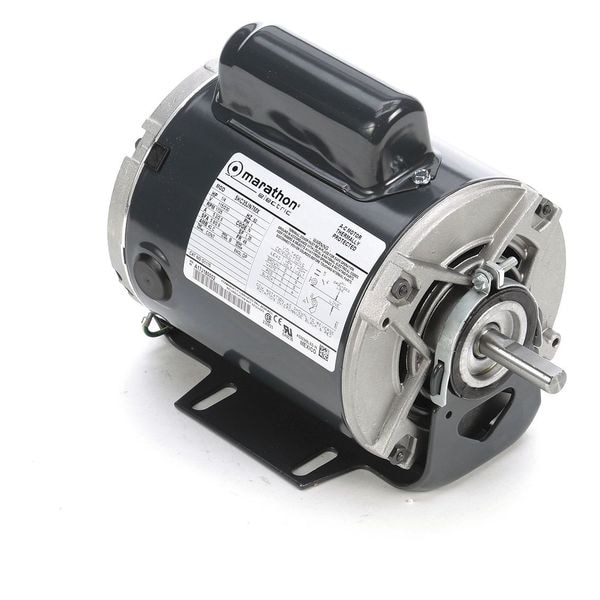

Capacitor-Start General Purpose Motor, 1/4 hp HP, 115/230V AC Voltage, 48 Frame
Mfr # 5KC35JN7X
Zoro # G6076271
product price:Â $223.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1/4 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
5KC35JN7X
Zoro #
G6076271
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
9 9/16 in
Shaft Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Shaft Length
1 1/2 in
Length Less Shaft
8 1/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.2/2.6 A, 48 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
