  11. Capacitor-Start General Purpose Motor, 3/4 HP, 115/230V AC Voltage, 56 Frame, 1,725 Nameplate RPM

This item is Discontinued.

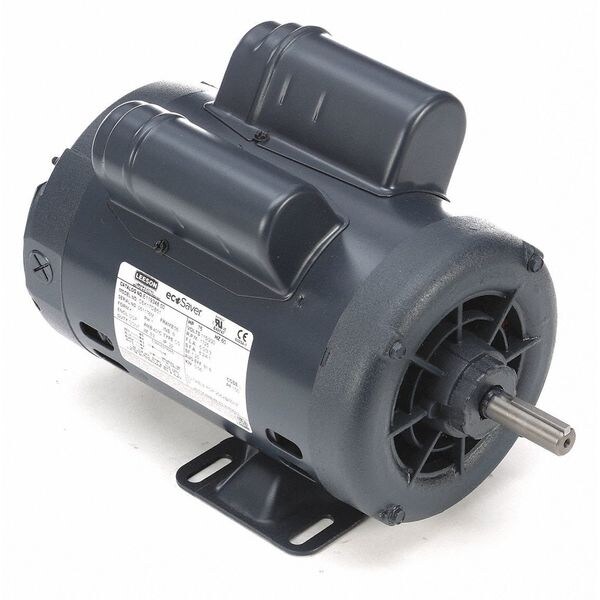

Leeson Capacitor-Start General Purpose Motor, 3/4 HP, 115/230V AC Voltage, 56 Frame, 1,725 Nameplate RPM E119348.00

Capacitor-Start General Purpose Motor, 3/4 HP, 115/230V AC Voltage, 56 Frame, 1,725 Nameplate RPM (Discontinued)

  • Mfr # E119348.00
  • Zoro # G2030537
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E119348.00
Zoro #
G2030537
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
13 1/8 in
Length Less Shaft
11 1/4 in
Manufacturers Warranty Length
3 yr
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Rigid Base
HP
3/4
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
Motor Thermal Protection
None
Motor Service Factor
1.25
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
General Application
Nameplate RPM
1,725
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA Certified, UL Listed
RPM Group
1701-1800
Max. Ambient Temp.
104 Degrees F
Full Load Amps
6.6/3.3 A
Phase
Single
Motor Bearings
Ball
Motor Efficiency Group
NEMA Premium Efficient
Frame Material
Rolled steel
Hz
60 Hz
Nominal Efficiency
81.8 %
Ins. Class
B
Duty
Continuous
Green Certification or Other Recognition
NEMA Premium(R) Rated
Weight
40 lb
Usable @ 208V
No
Duty Cycle
Continuous
Usable @ 200V
No
NEMA Design
B
Capacitor Required
Yes

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.6/3.3 A, 56 Frame, Usable @ 208V No, Usable @ 200V No, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
