Shop LEESON

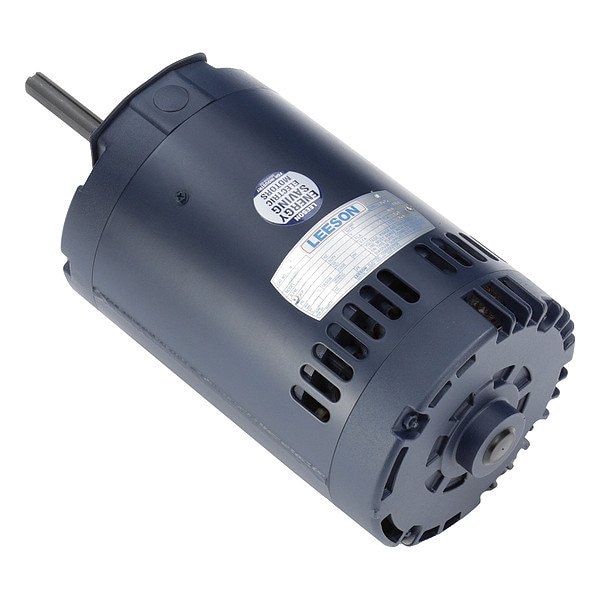

Condenser Fan Motor, 1 1/2 hp

  • Mfr # 111148.00

  • Zoro # G711931065

product price:  $747.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1 1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
111148.00
Zoro #
G711931065
UPC #
691720009635
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
11 5/16 in
Shaft Length
3 3/4 in
Overall Length
15 1/16 in
Stud Size
8-32
Body Dia.
5 11/16 in
Frame Size
56Y
Shaft Diameter
5/8 in
Wire Rope Length
15 1/16 in
Body Diameter
5.7 in
Mounting Stud Thread Size
#8-32

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
HP
1 1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
Frame
56Y
Motor Mounting Type
Band
Phase
Three
Motor Enclosure Design
Open Dripproof
Motor Bearings
Ball
Motor Service Factor
1.15
Full Load Amps
5.6 A
Motor Shaft Design
Flat
Application
Condenser Fan
Motor Shaft Rotation
CW/CCW
No. of Speeds
1
Duty
Continuous
Hz
60 Hz
Ins. Class
B
Standards
CSA Certified, UL Listed
Motor Thermal Protection
Auto
Motor Mounting Position
Vertical Shaft Up
Voltage Compatibility
230V AC, 460V AC
Motor Application
HVAC/R
Nominal Efficiency
79 %
Features
Vertical/Horizontal Mounting for Proper Placement of the Fan within Airflow
Max. Ambient Temp.
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Capacitor Required
Capacitor Not Required
Number of Speeds
1
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
5.6 A
Frame Material
Steel
Wattage
1120 W
Shaft Design
Flat
Product Type
Condenser Fan Motor
Bearing Type
Ball
Insulation Class
B
Sub Application
Condenser Fan
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Direct Drive
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 230/460V AC, 5.6 A Full Load Amps, 56Y Frame, Output Watts 1120 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Belly Band, Motor Frame Material Steel
