Shop LEESON

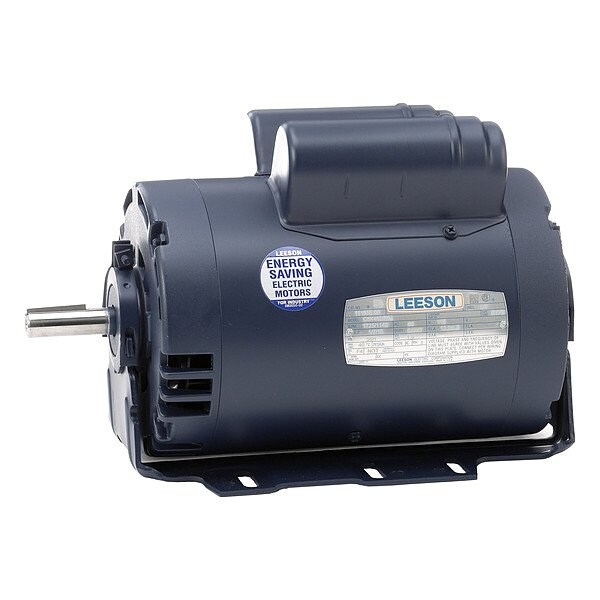

Condenser Fan Motor, 1 hp

  • Mfr # 111955.00
  • Zoro # G311931007
product price:
$
904.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
HP
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
111955.00
Zoro #
G311931007
UPC #
691720010426
Country of Origin
United States

Dimensions

Shaft Length
1 7/8 in
Overall Length
12 13/16 in
Shaft Dia.
5/8 in
Length Less Shaft
10 15/16 in
Body Dia.
6 1/2 in
Frame Size
56H
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Wire Rope Length
12 13/16 in
Length
12 13/16 in

Details

Item
Condenser Fan Motor
Motor Design
Capacitor-Start
HP
1
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC
Frame
56H
Motor Mounting Type
Resilient Base
Phase
Single
Motor Enclosure Design
Open Dripproof
Motor Shaft Design
Keyed
Ins. Class
F
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Service Factor
1
Nominal Efficiency
53 %
Full Load Amps
13.2/9.5 A
Conduit Box Position
F1
Max. Ambient Temp.
104 Degrees F
Usable @ 200V
Not Usable at 200V
Motor Sub Application
Condenser Fan
Capacitor Required
Capacitor Included
No. of Speeds
1
Usable @ 208V
Not Usable at 208V
Motor Bearings
Ball
Weight
44 lb
Features
Cradle Base Offers Flexibility when Mounting and Repositioning the Motor
Motor Thermal Protection
None
Voltage Compatibility
115V AC
Duty
Continuous
Standards
CSA Certified, UL Listed
Duty Cycle
Continuous
Motor Shaft Rotation
CW/CCW
Motor Application
HVAC/R
Hz
60 Hz
Output Watts
750 W
Inverter Rated
No
Bearing Protection
Shaft Shield
Inverter Rating
Not Inverter Rated
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
13.2/9.5 A
Ambient Temperature - Maximum
40 Degrees C
Application
Fan/Blower
Nameplate Service Factor @ 60 Hz
1
Drive Type
Belt Drive
Frame Material
Steel
Shaft Design
Keyed
Wattage
750 W
Sub Application
General Purpose
Mounting Position
Horizontal
Product Type
Fan and Blower Motor
Number of Speeds
1
Bearing Type
Ball
Insulation Class
F

Description

Condenser Fan Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115V AC, 13.2/9.5 A Full Load Amps, 56H Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
