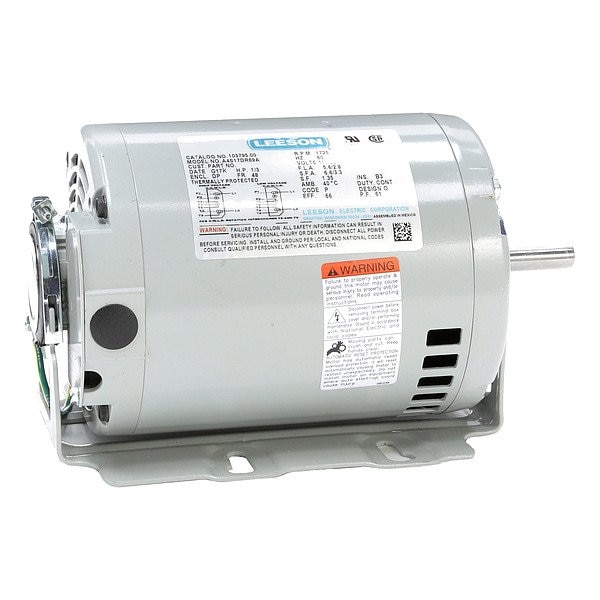

Condenser Fan Motor, 1/3 hp
Mfr # 103795.00
Zoro # G912190476
product price: $331.99
/ea
Free Shipping & Returns
Key Features
HP
1/3
Nameplate RPM
1,725
Voltage
115/230
Frame
48
Shaft Dia.
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
103795.00
Zoro #
G912190476
UPC #
691720053904
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Length Less Shaft
8 11/16 in
Overall Length
10 3/16 in
Body Dia.
5 11/16 in
Stud Size
8-32
Description
Condenser Fan Motor, Single Phase, Motor Design Split-Phase, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, 2.79 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
