Shop LEESON

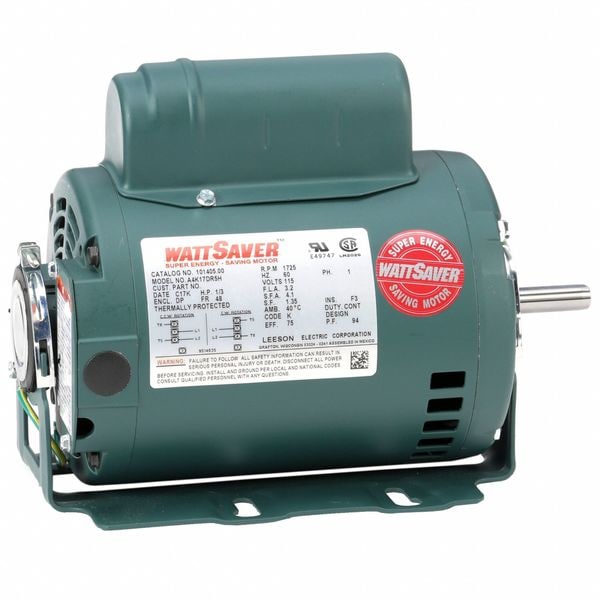

Fan and Blower Motor, 1/3 hp

  • Mfr # 101405.00

  • Zoro # G507353934

product price:
$
481.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
HP
1/3
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
101405.00
Zoro #
G507353934
UPC #
691720005507
Country of Origin
Mexico

Dimensions

Overall Length
10 3/8 in
Length Less Shaft
8 7/8 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Shaft Diameter
1/2 in
Frame Size
48
Body Diameter
5.6 in
Wire Rope Length
10 3/8 in
Length
10 3/8 in

Details

Item
Fan and Blower Motor
Motor Design
Capacitor-Start
HP
1/3
RPM Range
1,701-1,800
Nameplate RPM
1,725
Voltage
115V AC
Frame
48
Motor Mounting Type
Resilient Base
Phase
Single
Motor Enclosure Design
Open Dripproof
Voltage Compatibility
115V AC
No. of Speeds
1
Capacitor Required
Capacitor Included
Ins. Class
F
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Includes
Capacitors
Motor Thermal Protection
Auto
Conduit Box Position
F1
Full Load Amps
3.2 A
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
75 %
Weight
22 lb
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
NEMA 48
Motor Application
HVAC/R
Motor Bearings
Ball
Hz
60 Hz
Motor Sub Application
Fan & Blower
Motor Service Factor
1.35
Motor Frame Material
Steel
Standards
CSA, UL
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V
Mounting Position
Horizontal
Duty
Continuous
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.35
Motor Enclosure Type
Open Drip Proof
Drive Type
Belt Drive
Wattage
250 W
Full Load Current @ 60 Hz
3.2 A
Sub Application
General Purpose
Product Type
Fan and Blower Motor
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Frame Material
Steel
Application
Fan/Blower
Insulation Class
F

Description

Fan and Blower Motors, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 3.2 A, 48 Frame, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1.35, Ins. Class F, Motor Shaft Rotation CCW, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Dripproof, Motor Mounting Position Horizontal
