  6. Farm Duty Motor, Capacitor-Start/Run, 3/4 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame
No Product Image Available
Shop LEESON

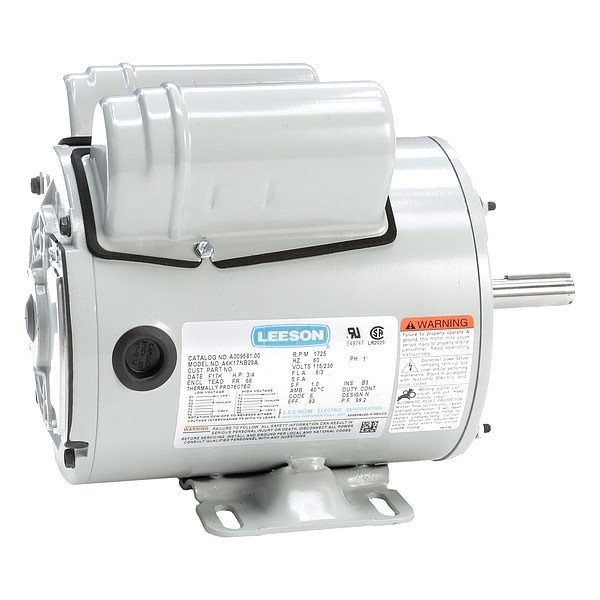

Farm Duty Motor, Capacitor-Start/Run, 3/4 HP, 115/230V AC, 1,725 Nameplate RPM, 56 Frame

  • Mfr # A009581.00

  • Zoro # G812190446

product price:  $568.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
3/4
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
A009581.00
Zoro #
G812190446
UPC #
691720103043
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 1/16 in
Shaft Dia.
5/8 in
Overall Length
10 15/16 in
Bolt Circle Dia.
5 7/8 in
Shaft Length
1 7/8 in

Details

Item
Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
3/4
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
General Purpose
Motor Shaft Rotation
CCW
Standards
CSA Certified, UL Listed
No. of Speeds
1
Hz
60 Hz
Item - Farm Duty Motors
Agricultural Fan Motor
Voltage Compatibility
115V AC, 230V AC
Motor Bearings
Ball
Finish
Powder Coated
Nominal Efficiency
83 %
Duty Cycle
Continuous
Full Load Amps
6/3 A
Ins. Class
B
Usable @ 208V
No
Capacitor Required
Yes
Max. Ambient Temp.
104 Degrees F
Usable @ 200V
No
Weight
29.8 lb
Extended Thru-Bolts
No

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6/3 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
