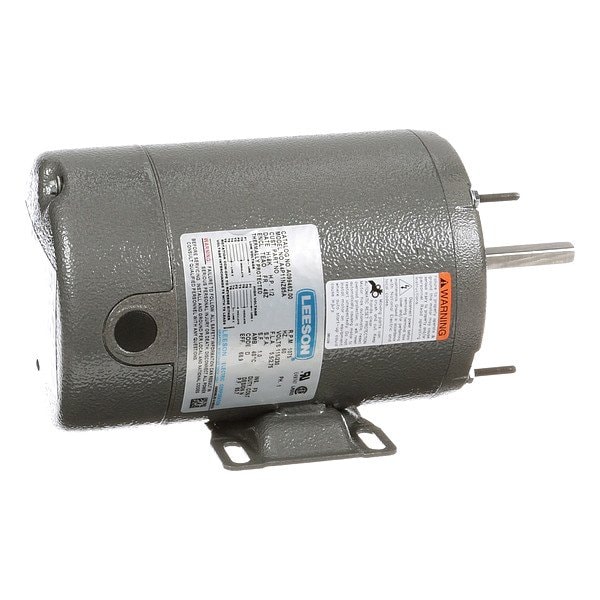

Farm Duty Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,075 Nameplate RPM, 48Z Frame
Mfr # A099462.00
Zoro # G212190411
product price:Â $465.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
Voltage
115/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
A099462.00
Zoro #
G212190411
UPC #
691720102992
Country of Origin
Mexico
Dimensions
Bolt Circle Dia.
5 1/8 in
Stud Size
#10-32
Shaft Dia.
1/2 in
Overall Length
10 7/8 in
Length Less Shaft
8 5/8 in
Shaft Length
2 1/4 in
Mounting Stud Length
1 in
Description
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.5/2.75 A, 48Z Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
