Shop LEESON

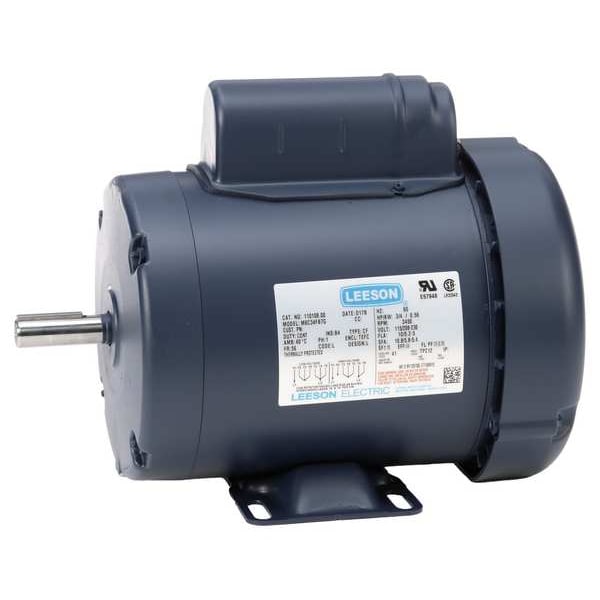

GeneralPurposeMotor, 3/4hp, 3450RPM, 56

  • Mfr # 110108.00

  • Zoro # G002015047

product price:  $416.99
/ea
Free Shipping & Returns

Key Features

Includes
Key
Nominal Efficiency
64 %
Motor Application
General Purpose
Weight
29 lb
Manufacturers Warranty Length
18 mo
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
110108.00
Zoro #
G002015047
UPC #
691720007853
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
18 mo
Shaft Length
1 7/8 in
Length Less Shaft
9 9/16 in
Overall Length
11 1/2 in
Shaft Dia.
5/8 in
Shaft Diameter
5/8 in
Frame Size
56
Wire Rope Length
11 1/2 in

Details

Item
General Purpose Motor
Includes
Key
Nominal Efficiency
64 %
Motor Application
General Purpose
Weight
29 lb
Frame
56
Voltage
115/230V AC
Ins. Class
B
Motor Mounting Type
Rigid Base
No. of Speeds
1
Nameplate RPM
3,450 RPM
Hz
60 Hz
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Service Factor
1.15
RPM Range
3,001-3,600
Full Load Amps
10.0/5.2-5.0 A
Inverter Rated
Not Inverter Rated
Motor Design
Capacitor-Start
Motor Thermal Protection
Manual
Usable @ 208V
Not Usable at 208V
Motor Shaft Design
Keyed
Part Winding Start Capable
No
Removable Base
Permanently Lubricated
NEMA Design
L
Usable @ 200V
Usable at 200V
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Standards
CSA, UL
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Bearing Protection
Double Shields
HP
3/4 hp
Phase
Single
Voltage Compatibility
115/208-230V AC
Duty Cycle
Continuous
Inverter Rating
Not Inverter Rated
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
10.0/5.2-5.0 A
Number of Speeds
1
Frequency
60 Hz
Product Type
General Purpose Motor
Insulation Class
B
Bearing Lubrication Type
Permanently Lubricated
Efficiency Rating
Standard Efficiency (IE1)
Bearing Type
Ball
Frame Material
Steel
NEMA Design Class
L
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Manufacturers Warranty
18 mo
Mounting Position
Horizontal

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 10.0/5.2-5.0 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
