Shop LEESON

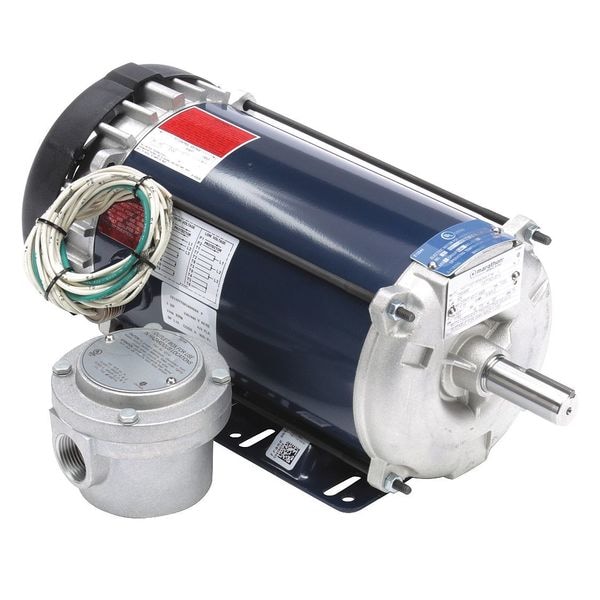

Hazardous Loc Mtr, 3 Ph, TEFC, 2 HP, T3B

  • Mfr # 145TTGR16040
  • Zoro # G3533117
product price:
$
924.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
145TTGR16040
Zoro #
G3533117
UPC #
-
Country of Origin
United States
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
145T
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Motor Bearings
Ball
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Frame Material
Steel
Duty
Continuous
Motor Service Factor
1.15
Nominal Efficiency
86.5 %
Motor Shaft Design
Keyed
Standards
CSA Certified, UL Listed
NEMA Design
B
Item
Hazardous Location Motor
Motor Application
Hazardous Location
Temp. Code
T3B
Max. Ambient Temp.
40 Degrees C
Ins. Class
F
Nameplate RPM
1,760 RPM
CC Number
CC003A
Hz
60 Hz
Full Load Amps
6.0/3.0 A
Frame Material
Steel
Motor Shaft Rotation
CW/CCW
Motor Efficiency Group
NEMA Premium Efficient
Includes
Explosion Proof Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Conduit Box Location
Exterior
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Hazardous Location Division
Division I
Weight
70.1 lb
Motor Mounting Position
Horizontal
Hazardous Location Group
Group C, Group D, Group E, Group F, Group G
Efficiency Rating
Premium Efficiency (IE3)
Bearing Type
Ball
Number of Speeds
1
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Mounting Position
Horizontal
Shaft Design
Keyed
Frequency
60 Hz
Temperature Code
T3B
Full Load Current @ 60 Hz
6.0/3.0 A
Application
Hazardous Location
Product Type
Hazardous Location Motor
Ambient Temperature - Maximum
40 Degrees C
NEMA Design Class
B
Insulation Class
F

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 6.0/3.0 A, 145T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
