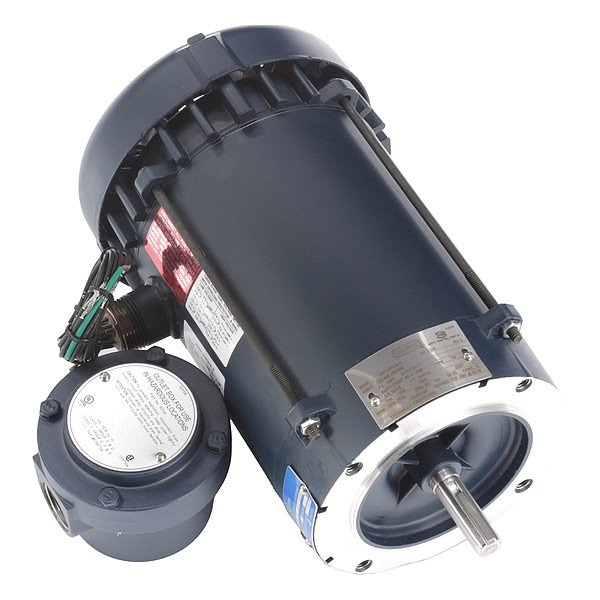

HazardousLocationMotor, 1hp, 3450RPM

  • Mfr # 119422.00

  • Zoro # G811935604

product price: $1,081.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
119422.00
Zoro #
G811935604
UPC #
691720046913
Country of Origin
Mexico

Dimensions

Overall Length
13 15/16 in
Shaft Length
1 7/8 in
Lead Length
6 in
Length Less Shaft
12 1/16 in
Shaft Dia.
5/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
3,001-3,600
Voltage
230V AC, 460V AC
Frame
56C
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face
RPM @ 50Hz
2,850 RPM
Nameplate RPM
3,450 RPM
Motor Service Factor
1
Duty Cycle
Continuous
Motor Application
Hazardous Location
Voltage Compatibility
230V AC, 460V AC
Motor Bearings
Ball
Hazardous Location Division
Division I
Temp. Code
T3B
Ins. Class
B
Full Load Amps
1.5 A
Includes
Explosion Proof Conduit Box
Usable @ 200V
Not Usable at 200V
HP @ 50Hz
3/4 hp
NEMA Design
B
Service Factor @ 50Hz
1
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Hz
60/50 Hz
Item
Hazardous Location Motor
Usable @ 208V
Not Usable at 208V
Standards
CSA Certified, UL Listed
Voltage @ 50Hz
190/380V AC
CC Number
Not Available
Motor Frame Material
Steel
Nominal Efficiency
80 %
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Keyed
Full Load Amps @ 50Hz
1.5 A
Motor Mounting Position
Horizontal
Conduit Box Location
Not available
Weight
36 lb
Hazardous Location Group
Group C, Group D, Group F, Group G

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 1.5 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
