Shop LEESON

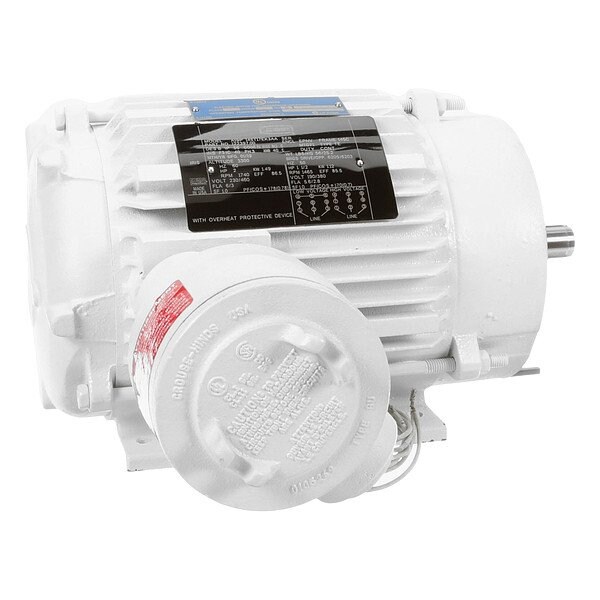

HazardousLocationMotor, 2hp, 1740RPM

  • Mfr # 122397.00

  • Zoro # G311935586

product price:  $1,585.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
122397.00
Zoro #
G311935586
UPC #
691720993903
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/8 in
Lead Length
12 in
Overall Length
13 7/16 in
Shaft Dia.
7/8 in
Length Less Shaft
11 5/16 in
Frame Size
145TC
Wire Rope Length
13 7/16 in
Shaft Diameter
7/8 in

Details

Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
1,701-1,800
Voltage
230V AC, 460V AC
Frame
145TC
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
T-Stat
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Mounting Type
C-Face, Rigid Base
Item
Hazardous Location Motor
CC Number
Not Available
Usable @ 200V
Not Usable at 200V
Standards
CSA Certified, UL Listed
Motor Application
Hazardous Location
Nameplate RPM
1,740 RPM
Service Factor @ 50Hz
1
Duty Cycle
Continuous
Conduit Box Location
Not available
No. of Speeds
1
Temp. Code
T3B
Motor Mounting Position
Horizontal
Ins. Class
F
Hazardous Location Division
Division I
HP @ 50Hz
1 1/2 hp
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Hz
60/50 Hz
Voltage @ 50Hz
190/380V AC
Motor Shaft Design
Keyed
Motor Bearings
Ball
Usable @ 208V
Not Usable at 208V
Includes
Explosion Proof Conduit Box
RPM @ 50Hz
1,465 RPM
Weight
56 lb
NEMA Design
B
Full Load Amps
3.0 A
Motor Service Factor
1
Nominal Efficiency
85.5 %
Motor Frame Material
Cast Iron
Full Load Amps @ 50Hz
3.0 A
Voltage Compatibility
230V AC, 460V AC
Hazardous Location Group
Group C, Group D, Group F, Group G
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Full Load Current @ 60 Hz
3.0 A
Frame Material
Cast Iron
Nameplate Service Factor @ 60 Hz
1
NEMA Design Class
B
Ambient Temperature - Maximum
40 Degrees C
Nameplate RPM @ 50 Hz
1,465 RPM
Application
Hazardous Location
Insulation Class
F
Mounting Position
Horizontal
Nameplate Service Factor @ 50 Hz
1
Number of Speeds
1
Efficiency Rating
Premium Efficiency (IE3)
Bearing Type
Ball
Temperature Code
T3B
Nameplate Horsepower @ 50 Hz
1 1/2 hp
Shaft Design
Keyed
Full Load Current @ 50 Hz
3.0 A
Product Type
Hazardous Location Motor
Frequency
60/50 Hz

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 1,740 RPM, No. of Speeds 1, Voltage 230V AC, 460V AC, Full Load Amps 3.0 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60/50 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Duty Cycle Continuous
