  6. HazLoc, 1/2 HP, 1725 RPM, 208-230/460V

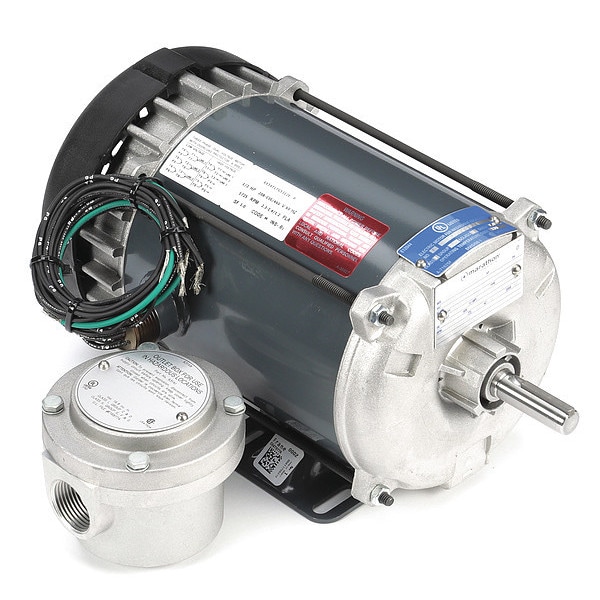

Leeson HazLoc, 1/2 HP, 1725 RPM, 208-230/460V 056T17G5312 - main

HazLoc, 1/2 HP, 1725 RPM, 208-230/460V

  • Mfr # 056T17G5312

  • Zoro # G7459453

product price:  $659.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
208-230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
056T17G5312
Zoro #
G7459453
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
11 15/16 in
Overall Length
13 15/16 in
Shaft Dia.
5/8 in
Lead Length
18 in

Details

Motor Design
Three-Phase
Phase
Three
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
56
Hazardous Location Class
Class I, Class II
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
Motor Bearings
Ball
Item
Hazardous Location Motor
Includes
Explosion Proof Conduit Box
Max. Ambient Temp.
40 Degrees C
NEMA Design
None
Motor Application
Hazardous Location
Motor Efficiency Group
Standard Efficient
Nominal Efficiency
68 %
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Standards
CSA Certified, UL Listed
Ins. Class
B
Nameplate RPM
1,725 RPM
Temp. Code
T3B
Voltage Compatibility
208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Full Load Amps
2.3-2.4/1.2 A
Duty
Continuous
Hz
60 Hz
Frame Material
Rolled steel
Motor Service Factor
1
No. of Speeds
1
Usable @ 200V
Not Usable at 200V
Conduit Box Location
Exterior
Hazardous Location Division
Division I
Usable @ 208V
Usable at 208V
Weight
206 lb
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Hazardous Location Group
Group C, Group D, Group F, Group G

Description

Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 2.3-2.4/1.2 A, 56 Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Hazardous Location Class Class I, Class II, Temp. Code T3B, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
