  11. HazLoc DC Motor, 1/2 HP, 1750 rpm, 90VDC

This item is Discontinued.

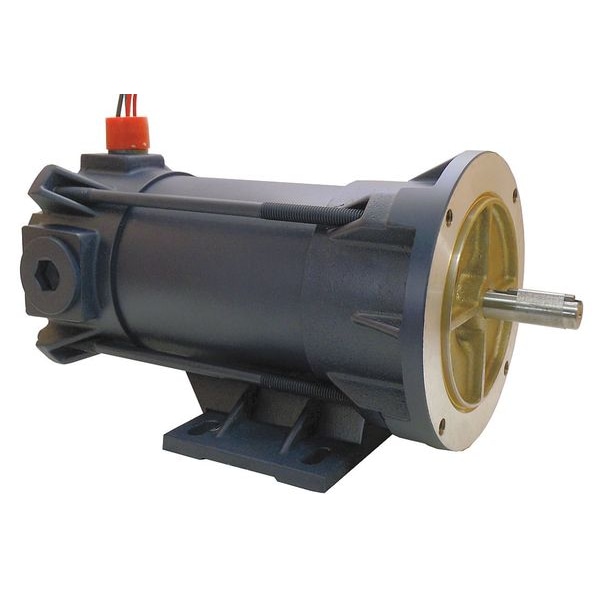

Leeson HazLoc DC Motor, 1/2 HP, 1750 rpm, 90VDC 118016.00

HazLoc DC Motor, 1/2 HP, 1750 rpm, 90VDC (Discontinued)

  • Mfr # 118016.00
  • Zoro # G5815424
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
118016.00
Zoro #
G5815424
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
14 7/16 in
Length Less Shaft
12 5/16 in
Shaft Dia.
5/8 in
Shaft Length
2 1/8 in
Lead Length
6 in

Details

Motor Design
Permanent Magnet DC
HP
1/2
RPM Range
1,701-1,800
Voltage
90V DC
Frame
56C
Hazardous Location Class
1 C,D / 2 F,G
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Mounting Type
Face/Base
Motor Shaft Design
Keyed
Full Load Amps
4.7 A
Temp. Code
T5
Motor Service Factor
1
Max. Ambient Temp.
104 Degrees F
Includes
6 in leads Through 3/4-14 NPT
Frame Material
Rolled steel
Motor Bearings
Ball
Standards
CSA, UL Recognized
Motor Application
Hazardous Location
Voltage Compatibility
90V DC
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
84.4 %
Motor Frame Material
Steel
Motor Efficiency Group
Standard Efficient
Ins. Class
H
Nameplate RPM
1,750
Item
Hazardous Location Motor
Duty
Continuous
Usable @ 208V
No
No. of Speeds
1
Duty Cycle
Continuous
Weight
73.3 lb
Motor Mounting Position
Horizontal
Usable @ 200V
No

Description

Motor,1/2 HP,1750 rpm,56C,90V
