  6. High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230, 1740 Nameplate RPM, 184 Frame

This item is Discontinued.

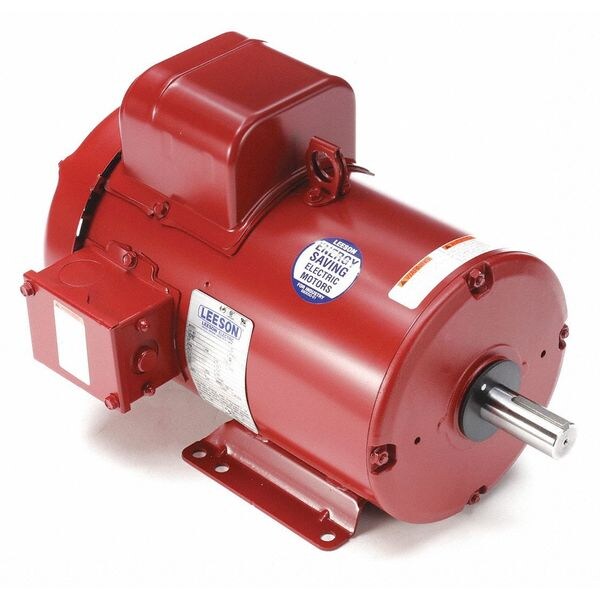

Leeson High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230, 1740 Nameplate RPM, 184 Frame 131543.00

High Torque Farm Duty Motor, Capacitor-Start/Run, 5 HP, 230, 1740 Nameplate RPM, 184 Frame (Discontinued)

  • Mfr # 131543.00
  • Zoro # G4608409
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
131543.00
Zoro #
G4608409
UPC #
691720017913
Country of Origin
Unknown

Dimensions

Shaft Length
2 3/4 in
Shaft Dia.
1 1/8 in
Length Less Shaft
14 11/16 in
Overall Length
17 7/16 in
Manufacturers Warranty Length
1 yr

Details

Item
Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
5
RPM Range
1,701-1,800
Voltage
230V AC
Frame
184T
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,740
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
High Torque
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA (LR2025), UL (E49747)
Item - Farm Duty Motors
Farm Duty Motor
Motor Bearings
Ball
Nominal Efficiency
82.5 %
Duty
Continuous
Max. Ambient Temperature
40 Degrees C
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Frame Material
Rolled steel
Motor Efficiency Group
Standard Efficient
Finish
Enamel
Hz
60 Hz
Full Load Amps
20.5 A
Ins. Class
F
Capacitor Required
Yes
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Weight
98 lb
Usable @ 200V
No
Usable @ 208V
No
Duty Cycle
Continuous

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 HP, Nameplate RPM 1,740, No. of Speeds 1, Voltage 230V AC, Full Load Amps 20.5 A, 184T Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
