  11. Saw Motor, 1-1/2 HP, 3450 RPM, 115/230V
This item is Discontinued.

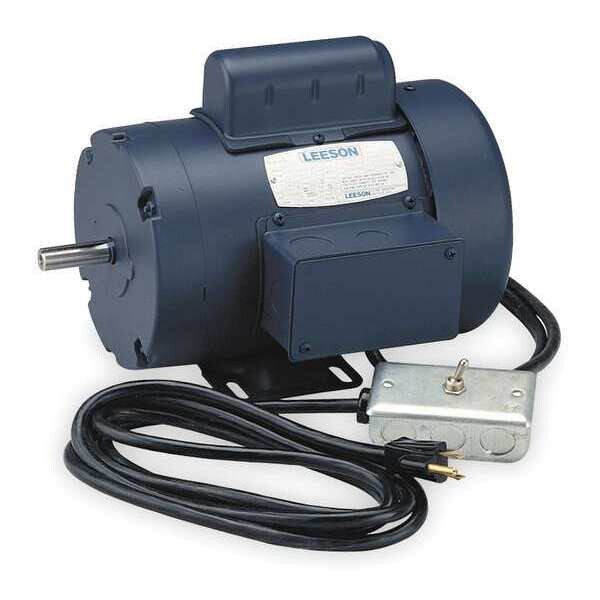

Leeson Saw Motor, 1-1/2 HP, 3450 RPM, 115/230V 113627.00

Saw Motor, 1-1/2 HP, 3450 RPM, 115/230V (Discontinued)

  • Mfr # 113627.00
  • Zoro # G2800472
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
113627.00
Zoro #
G2800472
UPC #
691720012239
Country of Origin
United States

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
10 7/16 in
Shaft Dia.
5/8 in
Overall Length
12 5/16 in
Cord Length
96 in

Details

Item
Table Saw Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan-Cooled
HP
1 1/2
Nameplate RPM
3,450
Frame
56
Voltage
115/230V AC
Full Load Amps
15.0/7.5 A
Motor Mounting Type
Rigid Base
RPM Range
3,001-3,600
Motor Thermal Protection
Manual
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Phase
Single
Standards
CSA Certified, UL Recocgnized
Includes
8 ft Power Cord with 115 Volt Grounded Plug and On/Off Toggle Switch
Motor Bearings
Ball
Ambient Temperature
40 Degrees C
Motor Application
Power Tool
Motor Service Factor
1
Hz
60 Hz
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Extended Thru-Bolts
No
Number of Shafts
1
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Usable @ 208V
No
Usable @ 200V
No
Nominal Efficiency
72 %
Conduit Box Location
Exterior
Conduit Box Position
F2
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Weight
37 lb
On/Off Switch
Yes
Motor Shaft Design
Keyed
Motor Frame Material
Steel

Description

Table Saw Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 HP, Nameplate RPM 3,450, No. of Speeds 1, 115/230V AC Voltage, Full Load Amps 15.0/7.5 A, 56 Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
