Shop LEESON

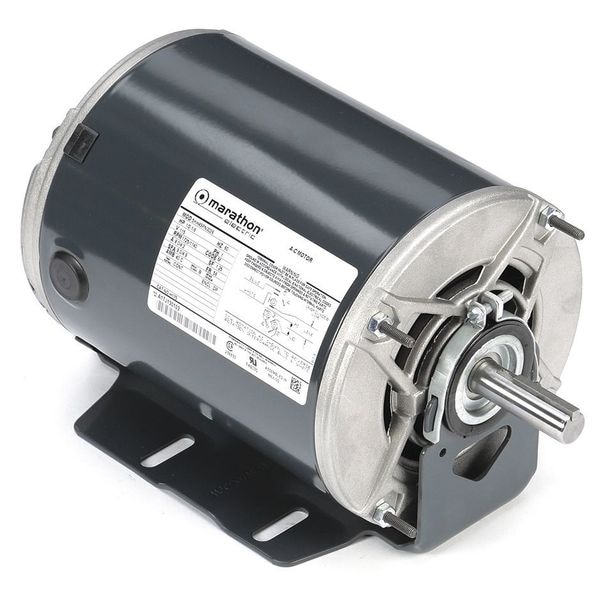

Split-Phase Fan and Blower Motor, 1/2 to 1/6 HP, 56 Frame, 115V AC Voltage

  • Mfr # 5KH49PN3026

  • Zoro # G0557606

product price:
$
360.99
/ea
Free Shipping & Returns

Key Features

Manufacturers Warranty Length
1 yr
Motor Enclosure Design
Open Dripproof
Nameplate RPM
1,725/1,140
HP
1/2, 1/6
Voltage
115V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5KH49PN3026
Zoro #
G0557606
UPC #
-
Country of Origin
Mexico
Item
Fan and Blower Motor
Motor Enclosure Design
Open Dripproof
Nameplate RPM
1,725/1,140
HP
1/2, 1/6
Voltage
115V AC
Frame
56
Hz
60
Phase
Single
Voltage Compatibility
115V AC
Max. Ambient Temp.
158 Degrees F
Motor Bearings
Ball
No. of Speeds
2
Nominal Efficiency
64 %
Motor Frame Material
Rolled Steel
Ins. Class
B
Motor Thermal Protection
None
Motor Service Factor
1.25
Motor Mounting Position
All Angle
RPM Range
1,725/1,140
Motor Shaft Design
Keyed
Motor Design
Split-Phase
Motor Mounting Type
Resilient Base
Motor Application
Fan and Blower
Standards
CE, CSA, UL
Motor Shaft Rotation
CW/CCW
Full Load Amps
8.0/4.2 A
Weight
27 lb
Duty Cycle
Continuous
Product Type
Fan and Blower Motor
Shaft Design
Keyed
Bearing Type
Ball
Mounting Position
All Angle
Duty
Continuous
Full Load Current @ 60 Hz
8.0/4.2 A
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Sub Application
Condenser Fan
Insulation Class
B
Application
Fan/Blower
Frame Material
Steel
Manufacturers Warranty
1 yr
Number of Speeds
2
Drive Type
Belt Drive
Ambient Temperature - Maximum
70 Degrees C
Nameplate Service Factor @ 60 Hz
1.25

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/2 hp, 1/6 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 8.0/4.2 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
