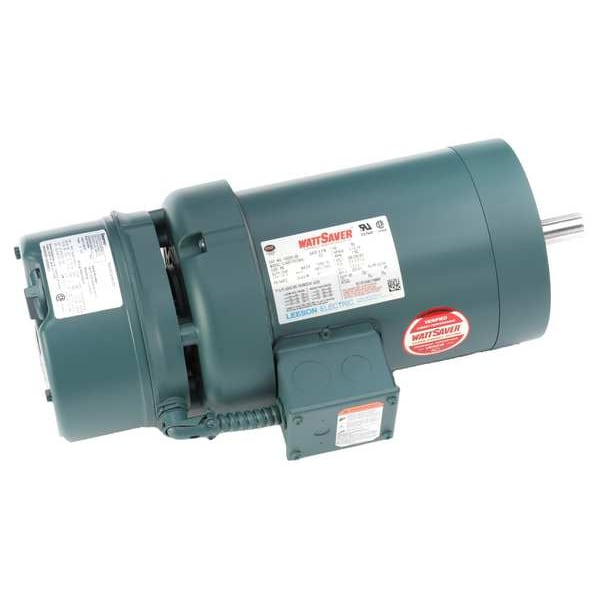

Three-Phase Brake Motor, 1 hp HP, 143TC Frame, 208-230/460V AC Voltage, 1,760 RPM Nameplate RPM
Mfr # 122251.00
Zoro # G502014809
product price:Â
$
1,384.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
1 hp
Nameplate RPM
1,760 RPM
Frame
143TC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 122251.00
- Zoro #
- G502014809
- UPC #
- 691720098882
- Country of Origin
- United States
Dimensions
- Overall Length
- 17 11/16 in
- Shaft Dia.
- 7/8 in
- Length Less Shaft
- 15 1/2 in
- Manufacturers Warranty Length
- 18 mo
- Shaft Length
- 2 in
- Shaft Diameter
- 7/8 in
- Frame Size
- 143TC
- Wire Rope Length
- 17 11/16 in
- Length
- 17 11/16 in
Description
Brake Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 1.7 A Full Load Amps, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
