Shop LEESON

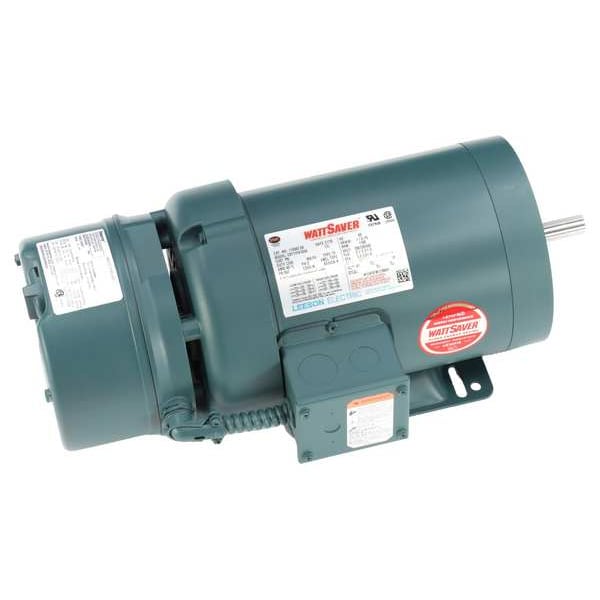

Three-Phase Brake Motor, 1 hp HP, 56C Frame, 208-230/460V AC Voltage, 1,760 RPM Nameplate RPM

  • Mfr # 119563.00

  • Zoro # G202014772

product price:  $1,364.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
1 hp
Nameplate RPM
1,760 RPM
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
119563.00
Zoro #
G202014772
UPC #
691720098714
Country of Origin
United States

Dimensions

Overall Length
17 3/16 in
Shaft Dia.
5/8 in
Manufacturers Warranty Length
18 mo
Length Less Shaft
15 7/16 in
Shaft Length
1 7/8 in
Shaft Diameter
5/8 in
Frame Size
56C

Details

Item
Brake Motor
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
1 hp
Nameplate RPM
1,760 RPM
Frame
56C
Voltage
208-230/460V AC
Motor Mounting Type
C-Face, Rigid Base
Brake Rating
6 ft-lb
RPM Range
1,701-1,800
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Standards
CSA, UL Recognized
Includes
Key
Usable @ 200V
Not Usable at 200V
Bearing Protection
Double Shield
Motor Service Factor
1.15
Usable @ 208V
Usable at 208V
Hz
60 Hz
Weight
45 lb
Nominal Efficiency
85.5 %
Duty Cycle
Continuous
Conduit Box Position
F1
Voltage Compatibility
208-230/460V AC
Motor Frame Material
Steel
Conduit Box Location
Exterior
Max. Ambient Temp.
40 Degrees C
Inverter Rated
Not Inverter Rated
Motor Thermal Protection
T-Stat
No. of Speeds
1
Full Load Amps
1.7 A
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Brake Model/Series
56000
Motor Bearings
Ball
Motor Application
General Purpose
Phase
Three
Inverter Rating
Not Inverter Rated
Application
General Purpose
Insulation Class
F
Motor Enclosure Type
Totally Enclosed Fan Cooled
Product Type
Brake Motor
Shaft Design
Keyed
Frame Material
Steel
Mounting Position
Horizontal
Frequency
60 Hz
Bearing Type
Ball
Brake Series
56000
Brake Torque
6 ft-lb
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
18 mo
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 60 Hz
1.7 A

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, 1.7 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
