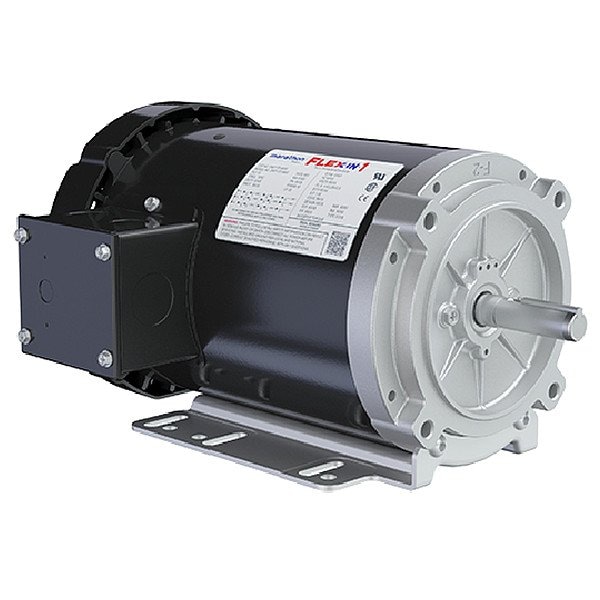

Three-Phase General Purpose Motor, 1 1/2 HP, 56HC Frame, 575V Voltage, 3,450 Nameplate RPM
Mfr # 056T34F15672
Zoro # G808610255
product price: $483.99
/ea
Free Shipping & Returns
Key Features
Nameplate RPM
3,450
Voltage
575V
Motor Mounting Type
Universal
Full Load Amps
1.60 A
Frame
56HC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
056T34F15672
Zoro #
G808610255
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
12 5/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3,450, Frame 56HC, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 1.60 A, Universal Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, 0-3,450, CE, CSA, UL
