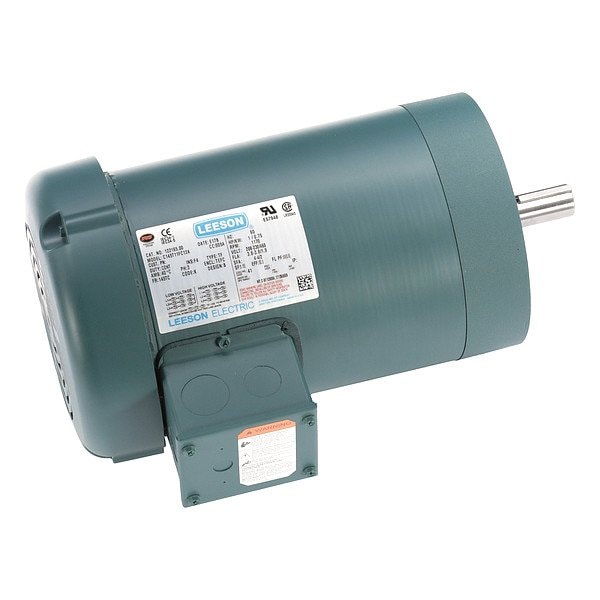

Three-Phase General Purpose Motor, 1 HP, 145TC Frame, 230/460V Voltage, 1,170 Nameplate RPM

  • Mfr # 122165.00

  • Zoro # G211929975

product price:
$
937.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1,170
Voltage
230/460V
Motor Mounting Type
C-Face
Full Load Amps
1.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
122165.00
Zoro #
G211929975
UPC #
691720043806
Country of Origin
United States

Dimensions

Length Less Shaft
11 3/16 in
Overall Length
13 7/16 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Frame Size
145TC
Shaft Diameter
7/8 in
Wire Rope Length
13 7/16 in

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1,170
Voltage
230/460V
Motor Mounting Type
C-Face
Full Load Amps
1.9 A
Frame
145TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1170
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
Reversible
Voltage Compatibility
230/460 V
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
82.5 %
Standards
CE, CSA Certified, UL Listed
Motor Thermal Protection
None
Usable @ 208V
Usable at 208V
NEMA Design
B
Usable @ 200V
Not Usable at 200V
Weight
46 9/32 lb
Duty Cycle
Continuous
Bearing Type
Ball
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
F
Mounting Position
Horizontal
Frame Material
Steel
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate RPM @ 50 Hz
1,460 RPM
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
1.9 A
Number of Speeds
1
NEMA Design Class
B
Efficiency Rating
Premium Efficiency (IE3)
Nameplate Voltage @ 50 Hz
190/380V AC
Product Type
General Purpose Motor
Application
General Purpose
Frequency
60 Hz

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1,170, Frame 145TC, Voltage 230/460V, 60 Hz Hz, Three Phase, Full Load Amps 1.9 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, 1170, CE, CSA Certified, UL Listed
