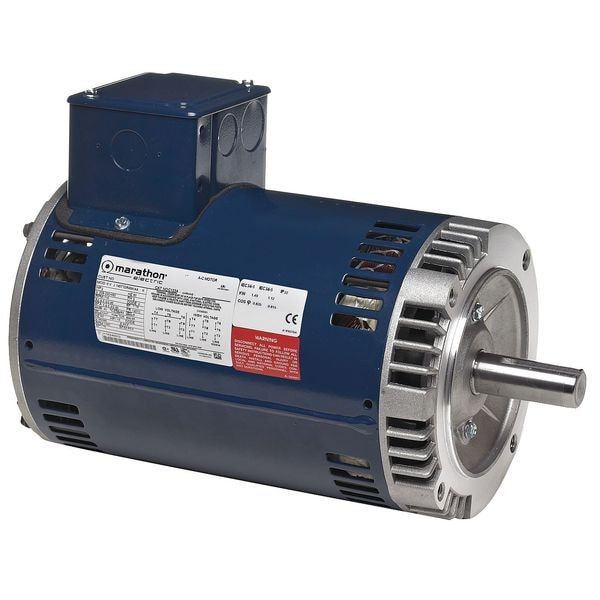

Three-Phase General Purpose Motor, 2 HP, 145TC Frame, 230/460V AC Voltage, 1750 rpm Nameplate RPM

  • Mfr # 145TTDR16359

  • Zoro # G0356443

product price:
$
523.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1750 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
6.0/3.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
145TTDR16359
Zoro #
G0356443
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
13 in
Overall Length
13 1/2 in
Shaft Dia.
7/8 in
Shaft Length
2 1/8 in
Manufacturers Warranty Length
1 yr
Frame Size
145TC
Shaft Diameter
7/8 in
Wire Rope Length
13 1/2 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1750 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
6.0/3.0 A
Frame
145TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA, UL Recognized
CC Number
CC003A
Inverter Rated
No
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
RPM @ 50Hz
1750 rpm
Service Factor @ 50Hz
1.15
Usable @ 200V
Not Usable at 200V
Weight
46 lb
Full Load Amps @ 50Hz
6.0/3.0 A
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
HP @ 50Hz
2 hp
Voltage @ 50Hz
230/460
Number of Speeds
1
Manufacturers Warranty
1 yr
Full Load Current @ 60 Hz
6.0/3.0 A
Frequency
60/50 Hz
Inverter Rating
Not Inverter Rated
Nameplate Horsepower @ 50 Hz
2 hp
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Application
General Purpose
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
NEMA Premium Efficiency
Nameplate RPM @ 50 Hz
1,445 RPM
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 50 Hz
6.0/3.0 A
Nameplate Voltage @ 50 Hz
190-220/380/415V AC
Frame Material
Steel
Mounting Position
Horizontal
Nameplate Service Factor @ 50 Hz
1.15
Insulation Class
B

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1750 rpm, Frame 145TC, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 6.0/3.0 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
