Shop LEESON

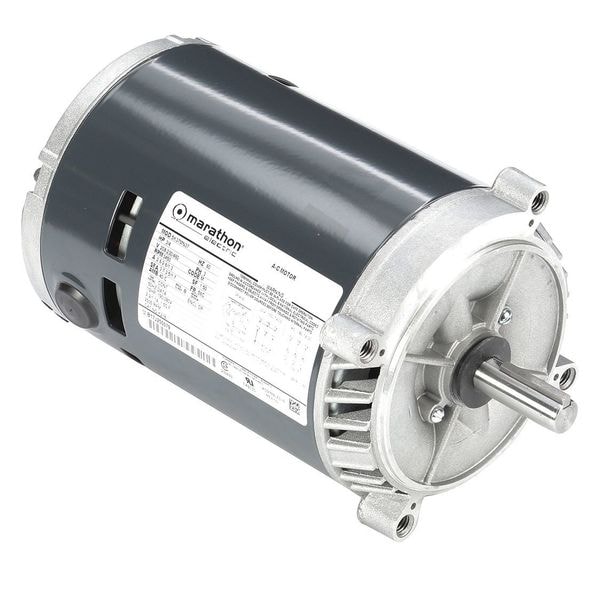

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # 5K37MN37

  • Zoro # G0375873

product price:
$
294.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.6/1.3 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5K37MN37
Zoro #
G0375873
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
8 13/16 in
Overall Length
10 11/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Shaft Diameter
5/8 in
Frame Size
56C
Wire Rope Length
10 11/16 in

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.6/1.3 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.5
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
74 %
Standards
CSA Certified, UL Listed
Motor Thermal Protection
None
NEMA Design
B
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Weight
17 lb
Full Load Current @ 60 Hz
2.6/1.3 A
Nameplate RPM @ 50 Hz
1,775 RPM
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Frequency
60 Hz
Mounting Position
All Angle
Efficiency Rating
NEMA Standard Efficiency
Manufacturers Warranty
1 yr
Nameplate Voltage @ 50 Hz
190/380V AC
Frame Material
Steel
Insulation Class
B
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Bearing Type
Ball
Application
General Purpose
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.5

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3/4 HP, Nameplate RPM 3,450, Frame 56C, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.6/1.3 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.5, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74 Percent, Continuous Duty, 3001-3600, CSA Certified, UL Listed
