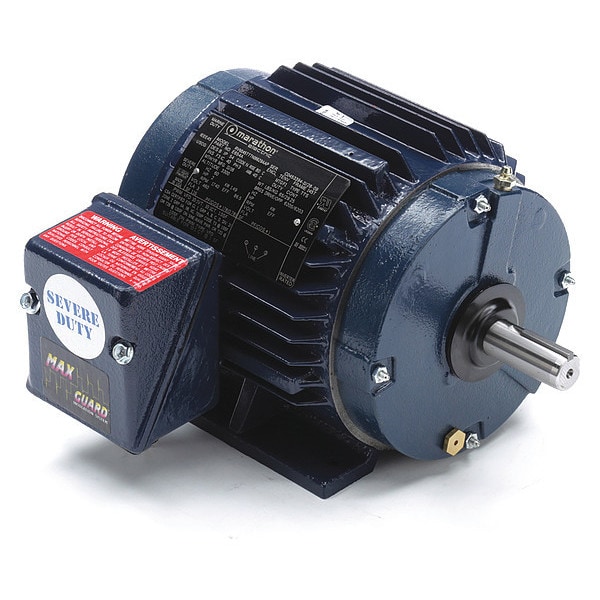

Three-Phase Severe Duty Motor, 2 HP, 145T Frame, 460V AC Voltage, 1740 rpm Nameplate RPM
Mfr # 145TTTN16629
Zoro # G7410140
product price:Â $665.99
/ea
Free Shipping & Returns
Key Features
HP
2
Nameplate RPM
1740 rpm
Voltage
460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3.0 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
145TTTN16629
Zoro #
G7410140
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
8 7/8 in
Overall Length
11 7/16 in
Shaft Dia.
7/8 in
Shaft Length
2 9/16 in
Manufacturers Warranty Length
1 yr
Description
Severe Duty Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 2 HP, Nameplate RPM 1740 rpm, Frame 145T, Voltage 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
