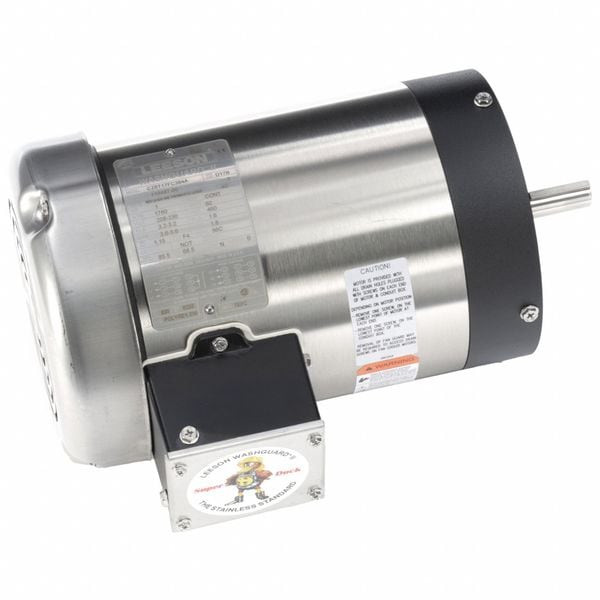

Three-Phase Washdown Motor, 1 hp HP, 56C Frame, 230/460V AC Voltage, 1,760 RPM Nameplate RPM
Mfr # 119487.00
Zoro # G507353897
product price:Â $1,010.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 119487.00
- Zoro #
- G507353897
- UPC #
- 691720052440
- Country of Origin
- United States
Dimensions
- Bolt Circle Dia.
- 5 7/8 in
- Overall Length
- 13 3/16 in
- Shaft Dia.
- 5/8 in
- Shaft Length
- 1 7/8 in
- Body Dia.
- 7.1 in
- Wire Rope Length
- 13 3/16 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face
