  11. Washdown Brake Motor, 1 HP, 1740 RPM

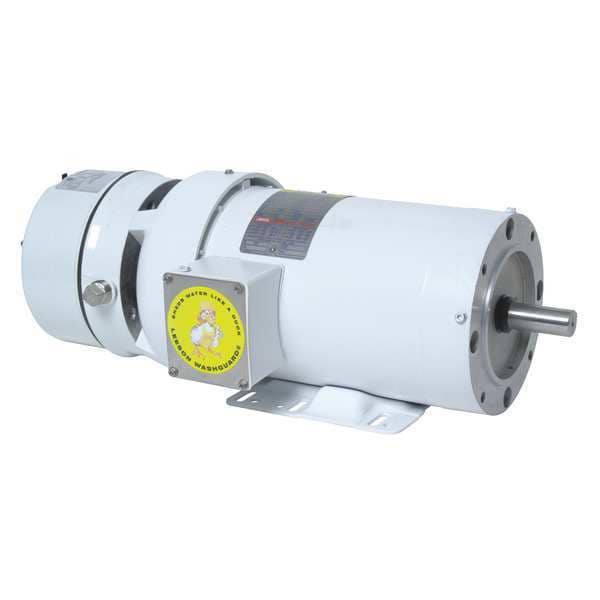

Leeson Washdown Brake Motor, 1 HP, 1740 RPM 122193.00 - main

Washdown Brake Motor, 1 HP, 1740 RPM

  • Mfr # 122193.00

  • Zoro # G4242220

product price: $1,471.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
143TC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122193.00
Zoro #
G4242220
UPC #
691720832158
Country of Origin
United States

Dimensions

Shaft Length
2 1/8 in
Shaft Dia.
7/8 in
Length Less Shaft
15 in
Overall Length
17 1/2 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
143TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Includes
6 ft-lb Brake
Nameplate RPM
1,750 RPM
Motor Service Factor
1.15
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Frame Material
Epoxy Coated
Motor Mounting Type
C-Face, Rigid Base
Motor Shaft Rotation
CW/CCW
Hz
60 Hz
CC Number
CC005A
Nominal Efficiency
85.5 %
Ins. Class
F
Motor Application
General Purpose
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Full Load Amps
2.8/1.4 A
Standards
BISSC, CE, CSA, UL
Motor Shaft Design
Keyed
NEMA Design
B
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Mounting Position
Horizontal
Usable @ 208V
Usable at 208V
Finish
Epoxy-Coated
No. of Speeds
1
Conduit Box Location
Exterior
Duty Cycle
Continuous
Removable Base
No
Weight
45 lb
Usable @ 200V
Not Usable at 200V
Endshield Material
Aluminum
Series
Washguard
Includes Brakes
Brake Included
Brake Rating
6 ft-lb
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.8/1.4 A, 143TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
