  11. Washdown Motor, 1-1/2HP, 3-Phase, 56C Frame
Shop All DC Washdown Motors
Leeson

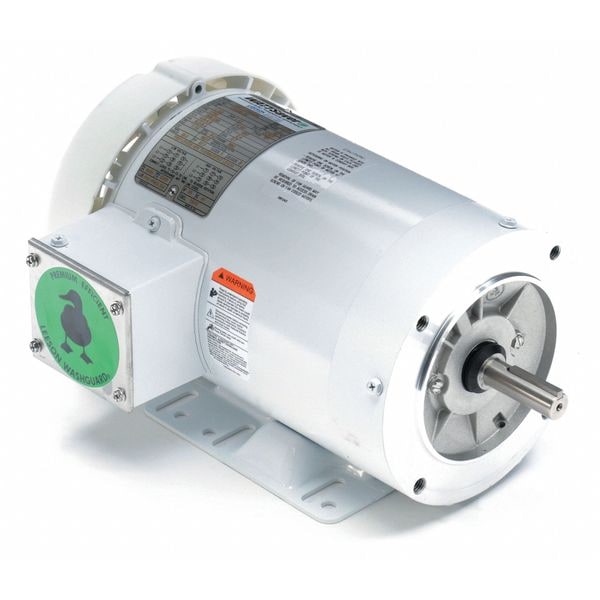

Washdown Motor, 1-1/2HP, 3-Phase, 56C Frame

product price: $766.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design 3-Phase
  • Phase Three
  • HP 1 1/2
  • RPM Range 1,701-1,800
  • Voltage 208-230/460V AC
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Shaft Length 1 7/8 in
Length Less Shaft 11 7/16 in
Overall Length 13 3/8 in
Body Dia. 7.38 in
Bolt Circle Dia. 5 7/8 in
Manufacturers Warranty Length 1 yr

Details

Item Washdown Brake Motor
Motor Design 3-Phase
Phase Three
HP 1 1/2
RPM Range 1,701-1,800
Voltage 208-230/460V AC
Frame 56C
Motor Frame Material Steel
Motor Thermal Protection None
Motor Enclosure Design Totally Enclosed Fan-Cooled
Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Frame Material Rolled steel
Hz 60 Hz
Motor Shaft Rotation CWSE
Motor Service Factor 1.15
Application General Purpose
Ins. Class F
Full Load Amps 4.6-4.8/2.4 A
Motor Bearings Ball
Motor Application Washdown
CC Number CC005A
Motor Mounting Type Face/Base
Nameplate RPM 1,750
Max. Ambient Temp. 40 Degrees C
Nominal Efficiency 86.5 %
Green Certification or Other Recognition NEMA Premium(R) Rated
Standards BISSC, CE, CSA, UL
Motor Mounting Position Horizontal
NEMA Design B
No. of Speeds 1
Finish Painted
Duty Cycle Continuous
Weight 66 lb
Usable @ 208V Yes
Voltage @ 50Hz 460V AC
Conduit Box Location Exterior
Usable @ 200V No
Removable Base No
Full Load Amps @ 50Hz 4.6-4.8/2.4 A

Description

Washdown Brake Motor, Three Phase, Motor Design 3-Phase, 1 1/2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.6-4.8/2.4 A, 56C Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base
