  11. Washdown Motor, 1 HP, 1740 RPM

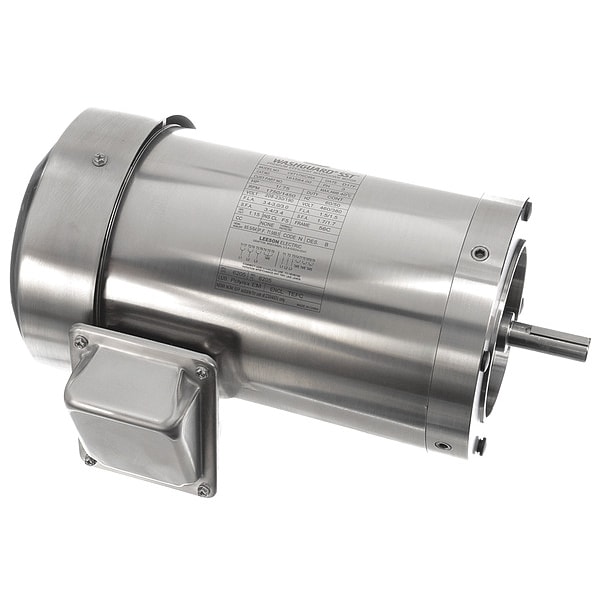

Leeson Washdown Motor, 1 HP, 1740 RPM 191564.00 - main

Washdown Motor, 1 HP, 1740 RPM

  • Mfr # 191564.00

  • Zoro # G7626844

product price: $1,308.00
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
191564.00
Zoro #
G7626844
UPC #
691720308240
Country of Origin
China

Dimensions

Overall Length
13 3/4 in
Shaft Dia.
5/8 in
Length Less Shaft
11 7/8 in
Body Dia.
6.5 in
Shaft Length
1 7/8 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
1,701-1,800
Voltage
208-230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Service Factor
1.15
Frame Material
Stainless Steel
Hz
60/50 Hz
Motor Bearings
Ball
Inverter Rated
Inverter Rated
Motor Shaft Design
Keyed
CC Number
CC005A
Motor Mounting Position
Horizontal
NEMA Design
B
Shaft Material
Stainless Steel
Motor Mounting Type
C-Face
Standards
BISSC Approved, CE, CSA Certified, UL Recognized
Motor Shaft Rotation
CW/CCW
Green Certification or Other Recognition
NEMA Premium(R) Rated
Nominal Efficiency
85.5 %
Motor Application
General Purpose
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Full Load Amps
3.2-3.0/1.5 A
Nameplate RPM
1,750 RPM
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Full Load Amps @ 50Hz
3.2-3.0/1.5 A
Conduit Box Location
Exterior
Finish
Unfinished
HP @ 50Hz
1 hp
Voltage @ 50Hz
460V AC
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
1,750 RPM
No. of Speeds
1
Duty Cycle
Continuous
Service Factor @ 50Hz
1.15
Weight
67 lb
Usable @ 208V
Usable at 208V
Series
Washguard
Inverter Rating
20:1
Conduit Box Position
F1/F2

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,750 RPM, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 3.2-3.0/1.5 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
