  11. Washdown Motor, 1 HP, Face/Base, 11-7/8in.L

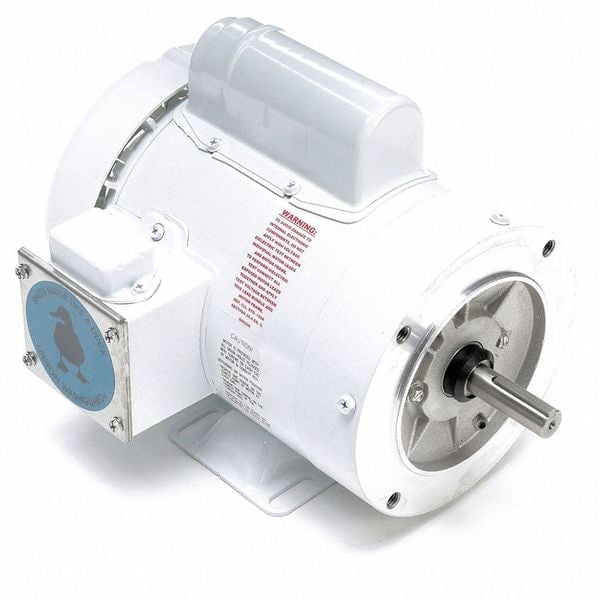

Leeson Washdown Motor, 1 HP, Face/Base, 11-7/8in.L 113583.00 - main

Washdown Motor, 1 HP, Face/Base, 11-7/8in.L

  • Mfr # 113583.00

  • Zoro # G4241940

product price: $543.00
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
RPM Range
3,001-3,600
Voltage
115/230V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
113583.00
Zoro #
G4241940
UPC #
691720012123
Country of Origin
United States

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
9 15/16 in
Shaft Dia.
5/8 in
Body Dia.
7.38 in
Overall Length
12 3/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1 hp
RPM Range
3,001-3,600
Voltage
115/230V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Ins. Class
F
Shaft Material
Stainless Steel
Motor Shaft Rotation
CW/CCW
Conduit Box
Split Clam Shell with Rubber Gasket
Drain Plugs
(2) in Conduit Box, (4) Each End
Motor Bearings
Ball
Hz
60 Hz
Endshields
Cast Aluminum
Motor Mounting Type
C-Face, Rigid Base
Motor Application
General Purpose
Nominal Efficiency
70 %
Inverter Rated
No
Motor Service Factor
1.15
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Frame Material
Rolled steel
NEMA Design
B
Full Load Amps
12.0/6.0 A
Motor Mounting Position
Horizontal
Includes
Splice Kit
Nameplate RPM
3,450 RPM
Duty
Continuous
Application
Washguard
Standards
BISSC, CE, CSA, UL
Motor Shaft Design
Keyed
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Removable Base
No
Finish
Epoxy-Coated
No. of Speeds
1
Usable @ 208V
Usable at 208V
Endshield Material
Aluminum
Weight
34 lb
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.0/6.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
