  11. Washdown Motor, 1 HP, Face/Base, 3-Phase

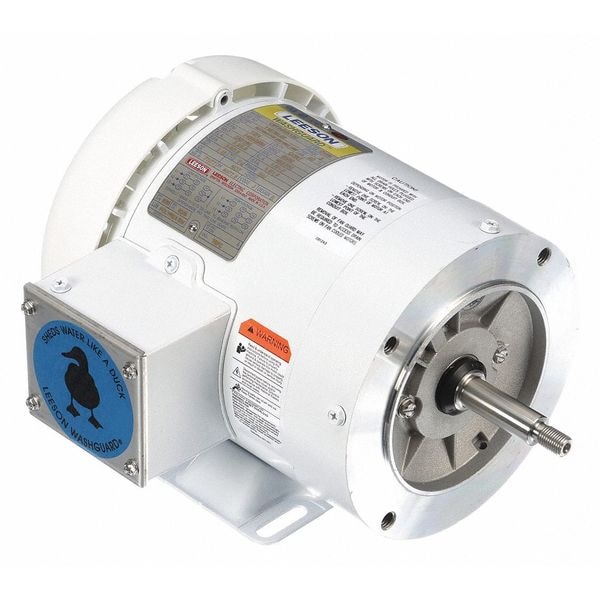

Leeson Washdown Motor, 1 HP, Face/Base, 3-Phase 116780.00 - main

Washdown Motor, 1 HP, Face/Base, 3-Phase

  • Mfr # 116780.00

  • Zoro # G4241791

product price: $570.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56J
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
116780.00
Zoro #
G4241791
UPC #
691720348987
Country of Origin
Mexico

Dimensions

Shaft Length
2 7/16 in
Overall Length
11 7/8 in
Shaft Dia.
5/8 in
Length Less Shaft
8 15/16 in
Body Dia.
7.38 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56J
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Includes
Splice Kit
Shaft Material
Stainless Steel
Hz
60/50 Hz
Motor Shaft Rotation
CW/CCW
Max. Ambient Temp.
40 Degrees C
Motor Application
General Purpose
Motor Mounting Position
Horizontal
Motor Bearings
Ball
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Service Factor
1.15
Conduit Box
Split Clam Shell with Rubber Gasket
CC Number
CC005A
Nominal Efficiency
77 %
Full Load Amps
3.2/1.6 A
Drain Plugs
(2) in Conduit Box, (4) Each End
Standards
BISSC, CE, CSA, UL
Nameplate RPM
3,450 RPM
NEMA Design
B
Duty
Continuous
Application
Washguard
Frame Material
Rolled steel
Inverter Rated
No
Ins. Class
F
Endshields
Cast Aluminum
Motor Mounting Type
C-Face, Rigid Base
Motor Shaft Design
Threaded
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Usable at 208V
Endshield Material
Aluminum
No. of Speeds
1
Finish
Epoxy-Coated
Full Load Amps @ 50Hz
3.4-3.2/1.6 A
Duty Cycle
Continuous
Weight
24 lb
Voltage @ 50Hz
460V AC
Removable Base
No
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 3.2/1.6 A, 56J Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
