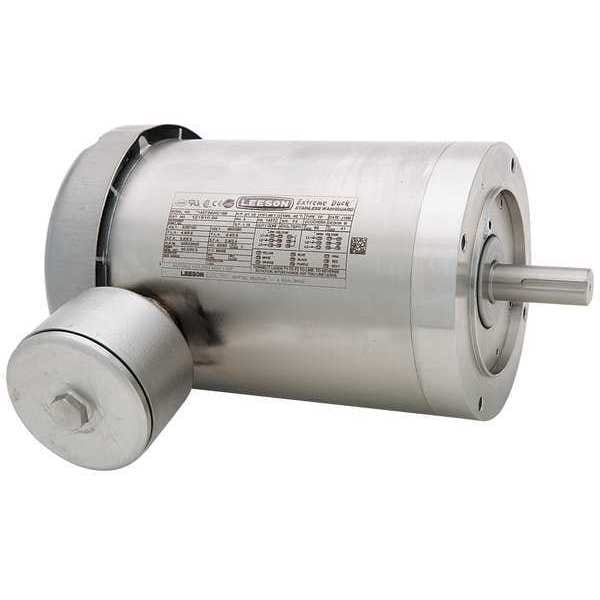

Washdown Motor, 2 HP, 143TC Frame
Mfr # 121910.00
Zoro # G7111925
product price: $1,615.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
121910.00
Zoro #
G7111925
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
10 11/16 in
Shaft Length
2 in
Overall Length
12 11/16 in
Body Dia.
6.56 in
Shaft Dia.
7/8 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
1 yr
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 143TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
