  11. Washdown Motor, 2HP, Face/Base, 145TC Frame

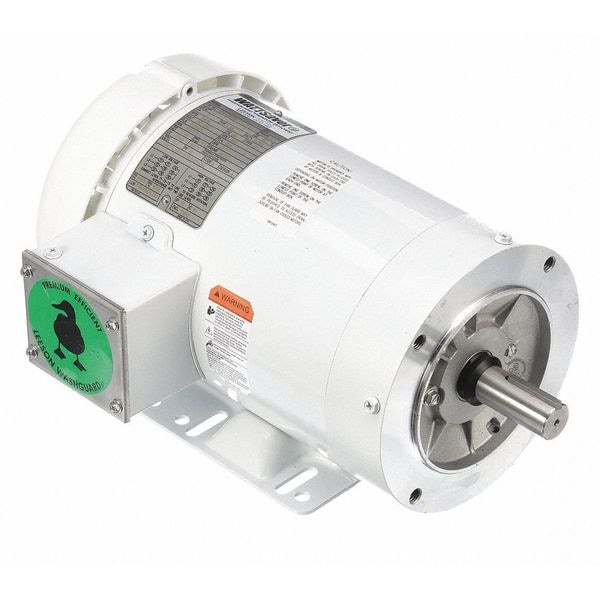

Leeson Washdown Motor, 2HP, Face/Base, 145TC Frame 122185.00 - main

Washdown Motor, 2HP, Face/Base, 145TC Frame

  • Mfr # 122185.00

  • Zoro # G4702446

product price: $862.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
122185.00
Zoro #
G4702446
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Length Less Shaft
11 7/16 in
Shaft Length
2 in
Overall Length
13 15/16 in
Body Dia.
7.38 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
2 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
145TC
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Application
General Purpose
Nominal Efficiency
85.5 %
Nameplate RPM
3,490 RPM
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Full Load Amps
4.8/2.4 A
Frame Material
Rolled steel
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
CC Number
CC005A
Motor Bearings
Ball
Motor Application
General Purpose
Motor Mounting Type
C-Face, Rigid Base
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
A
Standards
BISSC Approved, CE, CSA Certified, UL Recognized, USDA Approved
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Shaft Material
Stainless Steel
Duty Cycle
Continuous
Weight
34 lb
Finish
Epoxy-Coated
No. of Speeds
1
Usable @ 208V
Usable at 208V
Conduit Box Location
Exterior
Usable @ 200V
Not Usable at 200V
Endshield Material
Aluminum
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 2 hp HP, Nameplate RPM 3,490 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.8/2.4 A, 145TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design A, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
