  11. Washdown Motor, 3 Ph, TENV, 1 HP, 3450 rpm

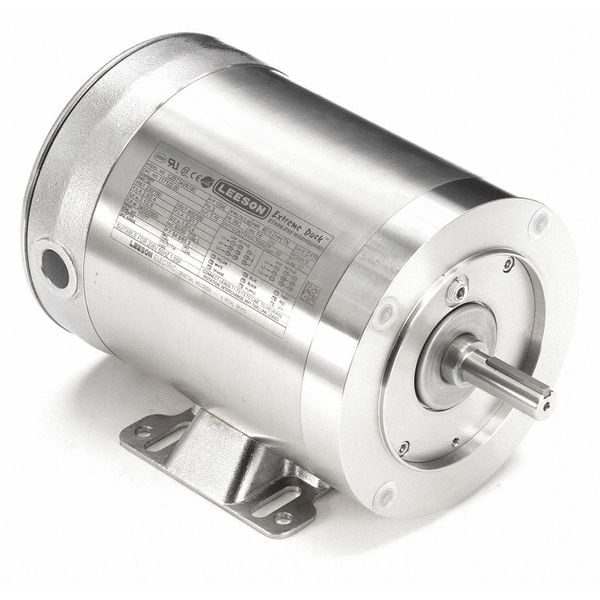

Leeson Washdown Motor, 3 Ph, TENV, 1 HP, 3450 rpm 117122.00 - main

Washdown Motor, 3 Ph, TENV, 1 HP, 3450 rpm

  • Mfr # 117122.00

  • Zoro # G0637183

product price: $1,236.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
117122.00
Zoro #
G0637183
UPC #
691720367490
Country of Origin
United States

Dimensions

Overall Length
11 1/4 in
Length Less Shaft
9 1/4 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Body Dia.
6.56 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
1 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Full Load Amps
2.6/1.3 A
Drain Plugs
None
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Frame Material
Stainless Steel
Standards
BISSC Approved, CSA Certified, UL Recognized
Ins. Class
F
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Nameplate RPM
3,450 RPM
Footnotes
8, 11
Endshields
Stainless steel
Duty
Continuous
Conduit Box
Oversized Stainless Steel BICB and Threaded Cover with O Ring
Application
Chemical Processing
Includes
Base, Bearing Carrier Cover, Conduit Box Cover Endshields, Frame
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Inverter Rated
Inverter Rated
Shaft Material
Stainless Steel
Hz
60/50 Hz
Motor Mounting Type
C-Face, Rigid Base
NEMA Design
B
Nominal Efficiency
77 %
Motor Mounting Position
Horizontal
No. of Speeds
1
Usable @ 208V
Usable at 208V
Full Load Amps @ 50Hz
2.6/1.3 A
Service Factor @ 50Hz
1.15
Usable @ 200V
Not Usable at 200V
HP @ 50Hz
1 hp
Duty Cycle
Continuous
Conduit Box Location
Exterior
Weight
42 lb
Endshield Material
Stainless Steel
RPM @ 50Hz
3,450 RPM
Voltage @ 50Hz
460V AC
Finish
Unfinished
Inverter Rating
6:1
Conduit Box Position
F1/F2

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.6/1.3 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
