  11. Washdown Motor, 3/4 HP, 3450 RPM

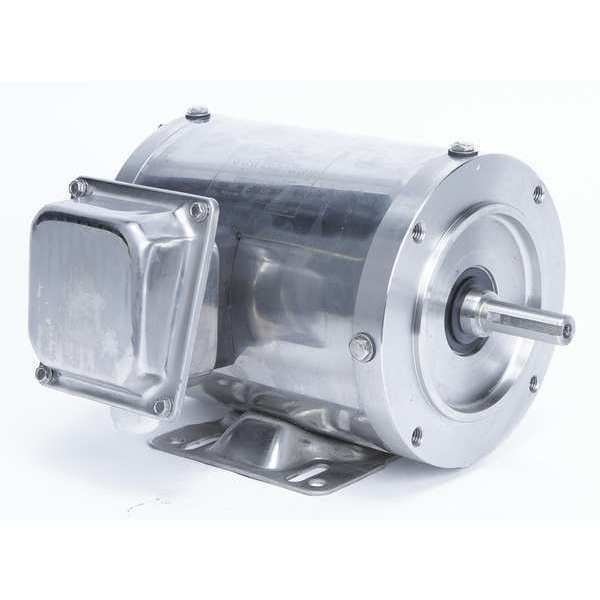

Leeson Washdown Motor, 3/4 HP, 3450 RPM 191206.00 - main

Washdown Motor, 3/4 HP, 3450 RPM

  • Mfr # 191206.00

  • Zoro # G4447670

product price: $911.69
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
191206.00
Zoro #
G4447670
UPC #
691720041345
Country of Origin
China

Dimensions

Length Less Shaft
8 1/2 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Body Dia.
6.5 in
Overall Length
9 3/4 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Stainless Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Nominal Efficiency
78.5 %
Full Load Amps
2.0/1.0 A
Hz
60/50 Hz
Motor Bearings
Ball
Nameplate RPM
3,450 RPM
Frame Material
Stainless Steel
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Service Factor
1.15
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
C-Face, Rigid Base
Standards
BISSC Approved, CE, CSA Certified, UL Recognized
Inverter Rated
Inverter Rated
Motor Shaft Design
Keyed
Shaft Material
Stainless Steel
Motor Mounting Position
Horizontal
NEMA Design
B
Weight
32 lb
HP @ 50Hz
3/4 hp
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Full Load Amps @ 50Hz
2.2-2.0/1.0 A
No. of Speeds
1
Service Factor @ 50Hz
1.15
RPM @ 50Hz
3,450 RPM
Voltage @ 50Hz
460V AC
Conduit Box Location
Exterior
Usable @ 208V
Usable at 208V
Finish
Unfinished
Series
Washguard
Conduit Box Position
F1/F2

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.0/1.0 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
