  11. Washdown Motor, 3/4HP, Face/Base, 56C Frame

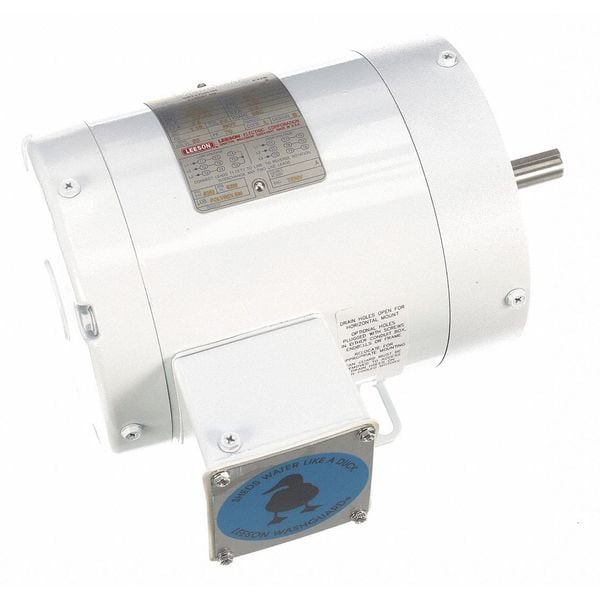

Leeson Washdown Motor, 3/4HP, Face/Base, 56C Frame 113587.00 - main

Washdown Motor, 3/4HP, Face/Base, 56C Frame

  • Mfr # 113587.00

  • Zoro # G4609136

product price: $551.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
113587.00
Zoro #
G4609136
UPC #
691720012123
Country of Origin
United States

Dimensions

Shaft Length
1 7/8 in
Length Less Shaft
8 5/8 in
Shaft Dia.
5/8 in
Overall Length
11 1/16 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
3/4 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Application
General Purpose
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
C-Face, Rigid Base
Frame Material
Rolled steel
Nominal Efficiency
80 %
Motor Bearings
Ball
Nameplate RPM
1,725 RPM
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Full Load Amps
2.5/1.3 A
Motor Service Factor
1.15
Standards
BISSC, CE, CSA, UL
Motor Shaft Design
Keyed
NEMA Design
B
Motor Mounting Position
Horizontal
Finish
Epoxy-Coated
Usable @ 208V
Usable at 208V
Conduit Box Location
Exterior
Removable Base
No
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
33 lb
Endshield Material
Aluminum
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 2.5/1.3 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
