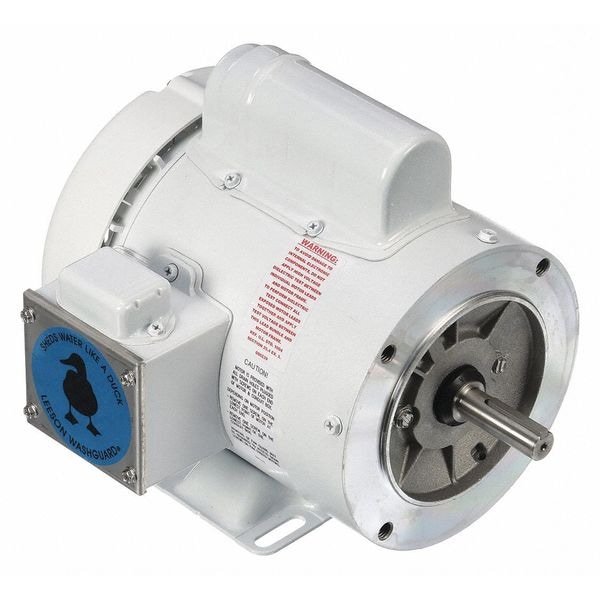

Leeson Washdown Motor, Face/Base, 10-7/8 in. L 112527.00 - main

Washdown Motor, Face/Base, 10-7/8 in. L

  • Mfr # 112527.00

  • Zoro # G4241977

product price: $486.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
RPM Range
1,701-1,800
Voltage
115/230V AC
Motor Frame Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
112527.00
Zoro #
G4241977
UPC #
691720010952
Country of Origin
Mexico

Dimensions

Overall Length
10 7/8 in
Shaft Dia.
5/8 in
Body Dia.
7.38 in
Shaft Length
1 7/8 in
Length Less Shaft
8 15/16 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
5 7/8 in

Details

Item
Washdown Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1/2 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56C
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Shaft Rotation
CW/CCW
Motor Mounting Type
C-Face
Inverter Rated
No
Motor Service Factor
1.15
Standards
BISSC, CE, CSA, UL
Endshields
Cast Aluminum
Motor Shaft Design
Keyed
Nameplate RPM
1,725 RPM
Max. Ambient Temp.
40 Degrees C
Shaft Material
Stainless Steel
Hz
60 Hz
Includes
Splice Kit
Motor Application
General Purpose
Full Load Amps
8.8/4.4 A
NEMA Design
B
Frame Material
Rolled steel
Nominal Efficiency
66 %
Conduit Box
Split Clam Shell with Rubber Gasket
Application
Washguard
Drain Plugs
(2) in Conduit Box, (4) Each End
Motor Bearings
Ball
Duty
Continuous
Ins. Class
F
Motor Mounting Position
Horizontal
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Endshield Material
Aluminum
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Finish
Epoxy-Coated
Removable Base
No
No. of Speeds
1
Weight
26 lb
Series
Washguard
Conduit Box Position
F1

Description

Washdown Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.8/4.4 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Removable Base No, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
