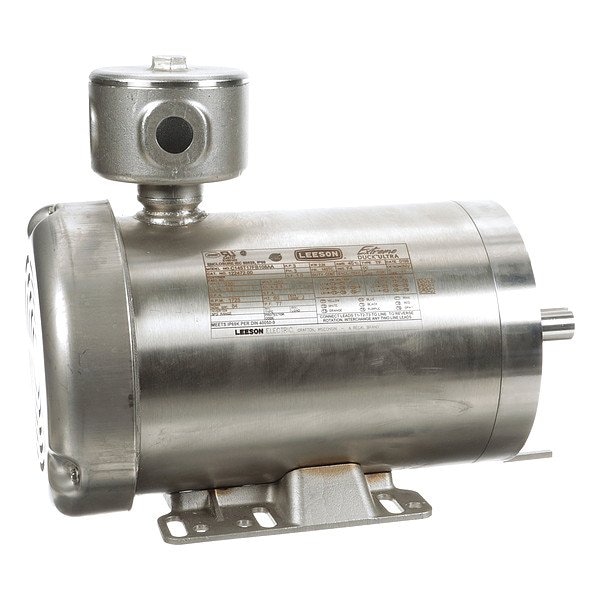

WashdownMotor, 3hp, 1725RPM, 230/460VAC
Mfr # 122472.00
Zoro # G111931252
product price:Â $2,557.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
HP
3 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
122472.00
Zoro #
G111931252
UPC #
691720059296
Country of Origin
United States
Dimensions
Overall Length
13 1/4 in
Shaft Dia.
7/8 in
Stud Size
3/8"-16
Bolt Circle Dia.
5 7/8 in
Body Dia.
7.4 in
Shaft Length
2 1/8 in
Length Less Shaft
11 1/8 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 8.8/4.4 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
