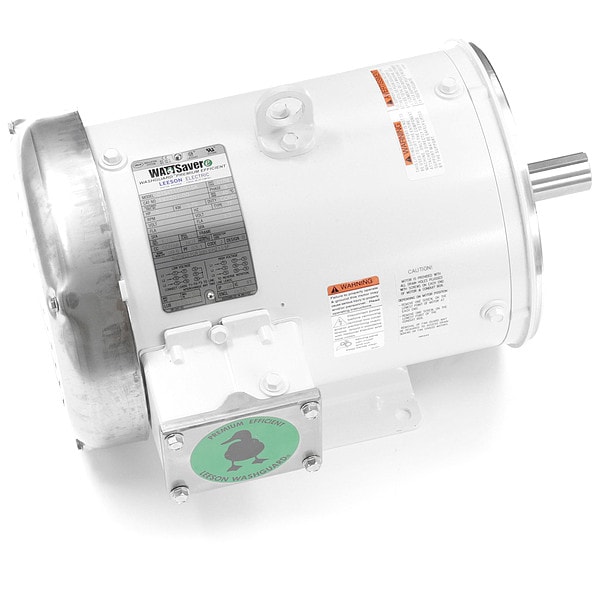

WashdownMotor, 5hp, 1760RPM, 230/460VAC
Mfr # 132201.00
Zoro # G606626670
product price: $1,587.00
/ea
Free Shipping & Returns
Key Features
Motor Design
Three-Phase
Phase
Three
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
184TC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
132201.00
Zoro #
G606626670
UPC #
691720051993
Country of Origin
Mexico
Dimensions
Body Dia.
8.5 in
Overall Length
15 1/2 in
Shaft Dia.
1 1/8 in
Shaft Length
2 5/8 in
Bolt Circle Dia.
7 1/4 in
Description
Washdown Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,760 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.6/6.3 A, 184TC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled
