  9. Double Connector, 3R Nema, Female, Red

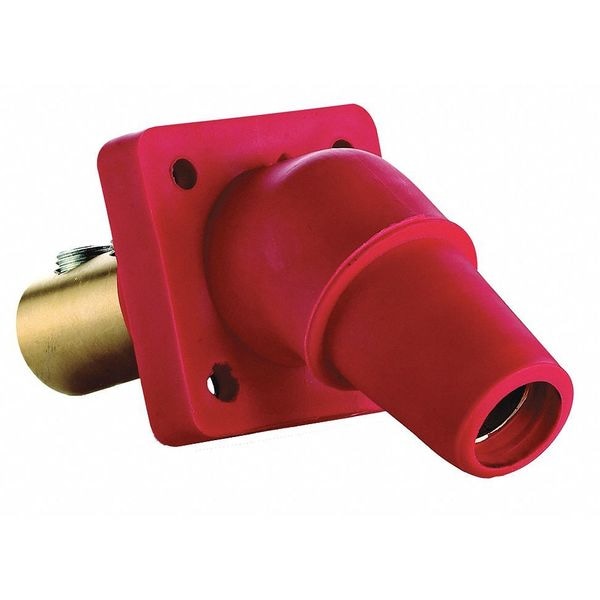

Legrand Double Connector, 3R Nema, Female, Red PS45FRBR - main

Double Connector, 3R Nema, Female, Red

  • Mfr # PS45FRBR

  • Zoro # G7314225

product price: $70.29
/ea

Key Features

Color
Red
Material
Santoprene
Current Rating
400 A
Cable Range
2/0 to 4/0
Single Pole Device Style
Taper Nose
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PS45FRBR
Zoro #
G7314225
UPC #
-
Country of Origin
Mexico

Dimensions

Maximum Wire Size
4/0 AWG
Minimum Wire Size
2 AWG
Wire Size
2/0 - 4/0

Details

Item
Double Connector
Color
Red
Material
Santoprene
Current Rating
400 A
Cable Range
2/0 to 4/0
Single Pole Device Style
Taper Nose
NEMA Rating
3R
Male/Female
Female
Series
16
Voltage Rating
600V AC
Amps AC/DC
400AC/DC
Standards
CSA Certified
Minimum Operating Temperature
-40 Degrees C
UL 94 Flammability Rating
V-2
Resistance Properties
Chemical Resistant, Impact Resistant
Terminal Connection Type
Double Set Screw
Housing Material
Santoprene
Gender
Female
Maximum Operating Temperature
75 Degrees C
Includes Mounting Hardware
No
Housing Color
Red
Compatible with Series
16
End Type
Taper Nose
Mounting Style
Through Hole Mounting
NEMA Enclosure Rating
3R, 4
For Location
Indoor, Outdoor
Voltage
600.0 V
Special Features
Cam-Type Devices are built with topquality materials for enhanced durability and service life, with increased insulation protection for safety. They are designed and engineered for interchangeability with other manufacturers' cam-type products. With their uncompromising construction and performance, P&S Cam-Type Devices are the worry-free choice for arenas and convention centers, concert venues, movie and other entertainment production, mining and construction, shipping, airports, and many other portable/ temporary power applications.
Standard
UL Listed, CSA Listed
Environmental Conditions
Environmental Flammability UL94 V2 Operating Temperature Maximum continuous +75°C, minimum -40°C without impact Enclosure NEMA Type 3R and 4
Amperage
400 A

Description

Double Connector, Current Rating 400 A, Gender Female, Housing Color Red, Housing Material Santoprene, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, End Type Taper Nose, NEMA Enclosure Rating 3R, 4, Standards CSA Certified, Terminal Connection Type Double Set Screw, UL 94 Flammability Rating V-2, Compatible with Series 16, For Location Indoor, Outdoor, Includes Mounting Hardware No, Maximum Operating Temperature 75 Degrees C
