  7. External Elbow Raceway, PN05 Series, 1 Channel, 1.125 in W, 0.625 in H, 1.62 in L, Ivory

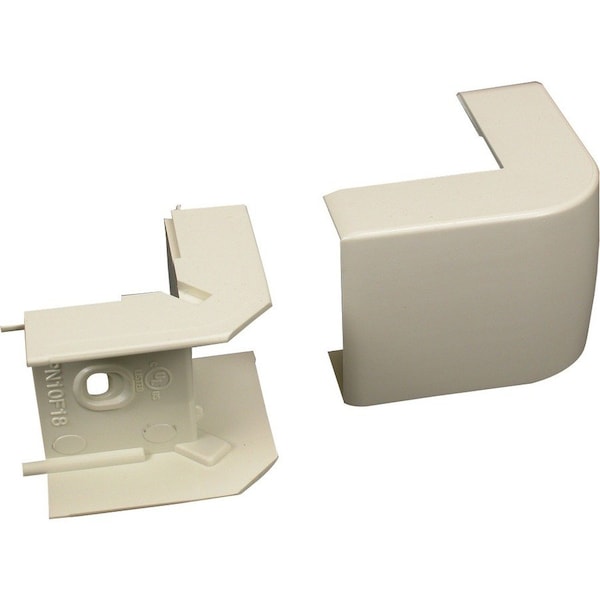

Legrand External Elbow Raceway, PN05 Series, 1 Channel, 1.125 in W, 0.625 in H, 1.62 in L, Ivory PN05F18V - main

External Elbow Raceway, PN05 Series, 1 Channel, 1.125 in W, 0.625 in H, 1.62 in L, Ivory

  • Mfr # PN05F18V

  • Zoro # G0833262

product price:  $2.39
/ea

Key Features

Type
External Elbow
Series
PN05
Number of Channels
1
Height
0.625 in
Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PN05F18V
Zoro #
G0833262
UPC #
786776015676
Country of Origin
United States

Dimensions

Width
1.125 in
Height
0.625 in
Length
1.62 in
Bend Radius
1 in
For Raceway Height
3/4 in
For Raceway Width
1 1/4 in
Overall Length
1 3/4 in
For Raceway Width x Height
1 1/8 in x 5/8 in
Overall Height
3/4 in
Overall Width
1 3/4 in

Details

Item
Raceway
Type
External Elbow
Series
PN05
Number of Channels
1
Material
Plastic
Color
Ivory
Cover Type
Snap On
For Use With
PN05 Raceway
Includes
(1) External Elbow
Standards
UL Listed
Mounting Style
Snap On
Features
For Right Angle Turns Around External Corners
Compatible with Product Type
PN05 Raceways
Voltage
600.0 V
Product Environmental Profile
Yes
Special Features
Designed for use with Ortronics® TracJack and Series IImodules. PSB3 Device Box accommodates wireless. Accommodates communication or power wiring. FT-4 Flame Spread Rating.
Product Color
Ivory
Product Name
Eclipse PN05 External Elbow Fitting
Standard
cULus Listed Raceway: File E90378 Guide RJTX. Complies with flammability rewuirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-2600 of CEC.
Application Sector
Residential/Commercial
Product Type
Cable Routing
Compatibility
Eclipse PN03, PN05, PN10 Low-Voltage Latching Raceway
Product Line
Wiremold
cULus Listed
Yes
Fittings Sub-Category
Elbows

Description

90 Degrees External Elbow, Series PN05, For Raceway Height 3/4 in, For Raceway Width 1 1/4 in, For Raceway Width x Height 1 1/8 in x 5/8 in, Material Non-Metallic, Color Ivory, Number of Channels 1, Mounting Style Snap On, Bend Radius 1 in, Compatible with Product Type PN05 Raceways, Includes (1) External Elbow, Overall Height 3/4 in, Overall Length 1 3/4 in, Overall Width 1 3/4 in, Standards UL Listed
