Shop LEGRAND

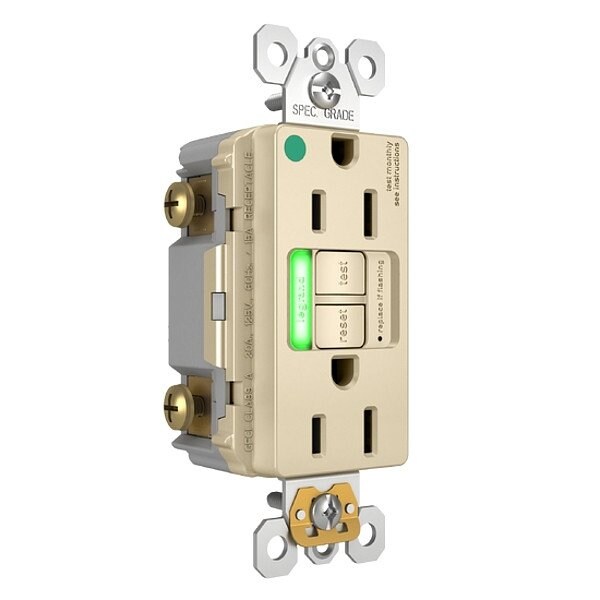

GFCI, 15 A, 125V AC, Ivory, Plastic

  • Mfr # 1597HGTRPII

  • Zoro # G022785043

product price:
$
60.65
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Surge Protection
No
Mount Type
Flush
Hub Type
Feed Through
Wire Connection Type
Screw Terminals
Includes
Wall Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1597HGTRPII
Zoro #
G022785043
UPC #
785007289794
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Width
0.9 in
Face Plate Width
1.7 in
Face Plate Height
2.7 in

Details

Surge Protection
No
Mount Type
Flush
Hub Type
Feed Through
Wire Connection Type
Screw Terminals
Includes
Wall Plate
Market
Commercial
Receptacle Type
Duplex
Number of Poles
2
NEMA Enclosure Rating
5
Number of Wires
3
AFCI
No
Number of Outlets
2
Standards
RoHS Compliant
Voltage Rating
125V AC
Self Testing
Yes
Housing Material
Plastic
Number of Wall Plates Included
0
Features
Auto-Ground Clip Assures a Positive Ground to Metal Box, Conducts an Industry-Leading Automatic Self-Test Every 3 Seconds, Enhanced Tamper-Resistant Automatic Shutter System Allows for Easier Plug Insertion While Inhibiting Young Children or Others from Inserting Objects, Equipped with Patented SafeLock(R) Protection, FSUL Listed (Federal Specification WC596), GFCI Receptacles Make it Easier to Fix Trips with a Reset Button Right on the Device, GFCIs Prevent Line-Load Reversal Due to Inadvertent Miswire, High-Impact-Resistant, Thermoplastic Construction for Superior Strength and Durability, Hospital Grade GFCIs are Subjected to Additional Performance Requirements, Including Reliability, Integrity, Strength, and Durability Tests, If Critical Components are Damaged and Ground-Fault Protection is Lost, Power to the Receptacle is Disconnected, Power-Indicating Green LED Provides Visual Indication of Power Being Present at the Receptacle, Protects Against Shock Caused by Ground-Fault Occurrences, The Trip Indicator Light Flashes if the Device Fails the Self-Test, Signaling the GFCI is to Be Replaced, There is No Power to the Face or Downstream Receptacles if Wired Incorrectly
Cover Type
No Cover
Polarized
No
GFCI
Yes
Item
GFCI
Current Rating
15 A
Maximum Operating Temperature
66 Degrees C
Resistance Properties
Tamper Resistant
Series
Radiant(R)
Contact Material
Brass
Housing Color
Ivory
Phase
Single
Flange Type
Non-Flanged
Number of Gangs
1
Wiring Method
Back/Side
Grounding
Grounded
For Location
Indoor
IP Rating
Not Rated
Grade
Hospital Grade
Shrouded
No
Minimum Operating Temperature
-35 Degrees C
UL 94 Flammability Rating
V-2
NEMA Receptacle Configuration
5-15R

Description

GFCI, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Plastic, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards RoHS Compliant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals
