Shop LEGRAND

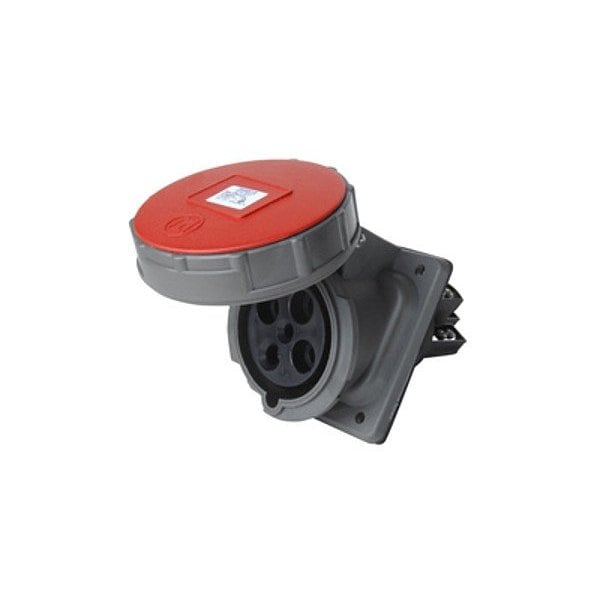

PinandSleeveRcptcl, 60A, 30hp, Gry, Nylon

  • Mfr # PS460R7W

  • Zoro # G422785148

product price:
$
452.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Minimum Operating Temperature
-50 Degrees C
Horsepower Rating
30 hp
Minimum Wire Size
2 AWG
Grounding Style
Style 2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
PS460R7W
Zoro #
G422785148
UPC #
785007460476
Country of Origin
United States
Number of Poles
3
Minimum Operating Temperature
-50 Degrees C
Horsepower Rating
30 hp
Grounding Style
Style 2
Contact Material
Nickel-Plated Brass
NEMA Enclosure Rating
4X
Voltage Rating
480V AC
Item
Pin and Sleeve Receptacle
Resistance Properties
Corrosion Resistant
For Environment
Submersible, Wet
Maximum Operating Temperature
80 Degrees C
UL 94 Flammability Rating
V-2
Power Indicating Light
No
Features
Combination-Head Screws for Added Convenience and Quick Installation, Cover with Integral Neoprene Gasket Provides Watertight Seal, Front and Back Body Require No Disassembly Prior to Assembly, Locking Ring with an Integral Neoprene Gasket Provides Watertight Seal When Plug and Connector/Receptacle Are Mated, Natural-Rubber Grommets Provide Watertight Protection at Cable Entry, Revolutionary, Hinged Cord Grip for Durable Performance and Ease of Installation
Standards
cULus 151348, IEC 309, UL Listed
Shrouded
Yes
Reverse Service
No
Phase
Three
Number of Gangs
1
IP Rating
IP67
Housing Material
Nylon
Flange Type
Flanged
Housing Color
Gray
Market
Commercial
GFCI
No
Wire Connection Type
Screw Terminals
Current Rating
60 A
Number of Wires
4

Description

Pin and Sleeve Receptacle, Current Rating 60 A, Flange Type Flanged, Grounding Style Style 2, Hazardous Location Specification Not Applicable, IP Rating IP67, NEMA Enclosure Rating 4X, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Shrouded Yes, Voltage Rating 480V AC, Horsepower Rating 30 hp, Housing Color Gray, Housing Material Nylon, Market Commercial, Maximum Wire Size 2 AWG, Minimum Wire Size 2 AWG, Power Indicating Light No, Resistance Properties Corrosion Resistant
