Shop LEGRAND

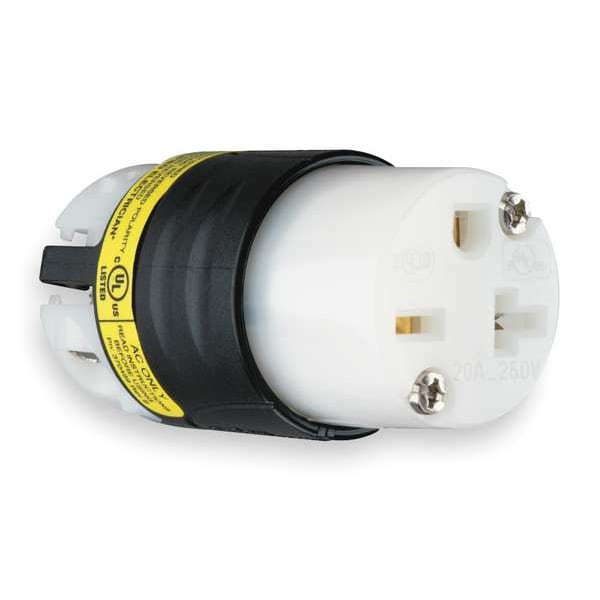

Straight Blade Connector, 6-20R, 20 A, 250V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White

  • Mfr # PS5469XGCM

  • Zoro # G2234687

product price:  $38.35
/ea

Key Features

NEMA Receptacle Configuration
6-20R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PS5469XGCM
Zoro #
G2234687
UPC #
785007237252
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.23 in
Cord Size
0.230 in to 0.720 in
Minimum Wire Size
18 AWG
Maximum Wire Size
12 AWG

Details

Item
Straight Blade Connector
NEMA Receptacle Configuration
6-20R
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap or Cover
IP Rating
IP20
Standards
cULus Listed, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Antimicrobial
No
Grade
Specification
Power Indicator
No
Material
Nylon
Corrosion Resistant
No
Special Features
Moisture, Dust, and Weather Resistant
Voltage
250VAC
Power Indicating Light
No
Housing Material
Nylon
Market
Commercial, Residential
Contact Material
Brass
NEMA Configuration
6-20
NEMA Plug Configuration - Plugs and Receptacles
6-20R
Grade - Plugs and Receptacles
Specification
Horsepower Rating
2 hp
Shrouded
No

Description

Ground Continuity Monitoring Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, NEMA Receptacle Configuration 6-20R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.23 in, Grade Specification, Housing Material Nylon, IP Rating IP20
