  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

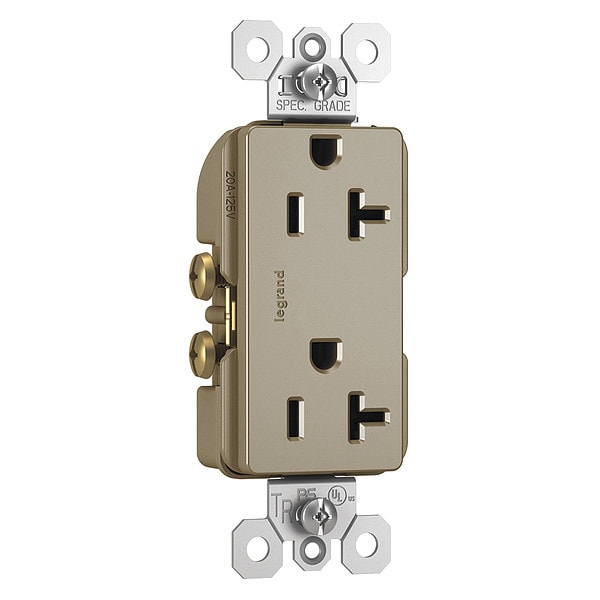

Legrand Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded TR26352RNICC6 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # TR26352RNICC6

  • Zoro # G4425778

product price: $10.39
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TR26352RNICC6
Zoro #
G4425778
UPC #
-
Country of Origin
Mexico

Dimensions

Face Plate Height
3.3 in
Face Plate Width
1.4 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.9 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Silver
Mount Type
Flush
Standards
CSA Certified C22.2 No. 42, CSA Certified LR16063, NEMA WD-1 and WD-6, UL 498, UL E140596
Resistance Properties
Corrosion Resistant, Impact Resistant, Tamper Resistant
Flange Type
Non-Flanged
NEMA Configuration
5-20
Weather Resistant - Plugs and Receptacles
No
Application Environment
Commercial, Industrial
Includes
Auto-Ground Clip, Mounting Hardware
Surge Suppression
No
Tamper Resistant
Yes
Material
Nylon
Mounting Type
Box
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Power Indicator
No
Outlet Type
Tamper-Resistant,Indoor,Residential
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Push and Side
Number of Gangs
1
Wire Connection Types
Screw Terminals
Number of Poles & Wires
2 Pole / 3 Wire
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Contact Material
Brass
Additional Electrical Protection
Standard Protection
Housing Material
Nylon (Face)
Key Resistance Properties
Corrosion Resistant - Corrosion Resistant - 20 A, Tamper Resistant - Corrosion Resistant - 20 A, Tamper Resistant - Tamper Resistant - 20 A
UL 94 Flammability Rating
V-2
Market
Commercial, Industrial, Residential
Grade
Federal Specification
Surge Protection
No
Includes Mounting Hardware
Yes
Is Tamper-Resistant
Yes

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Silver, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Tamper Resistant
