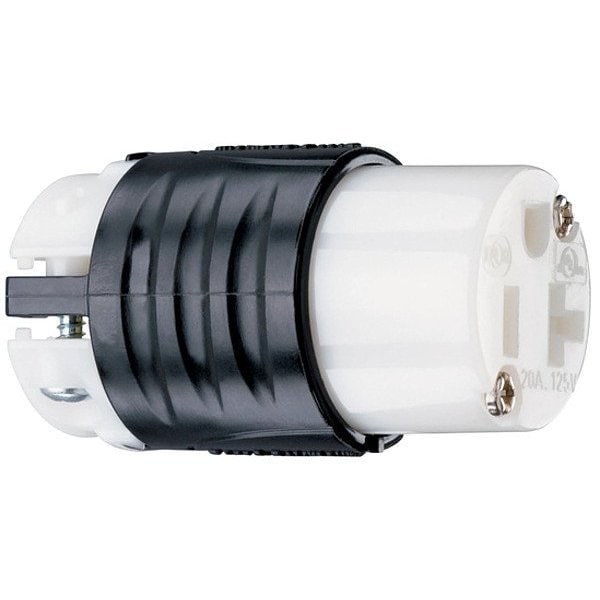

StraightBladeConnector, 1hp, 20A, Black
Mfr # PS5369X
Zoro # G422784196
product price:Â
$
51.69
/ea
Key Features
Current Rating
20 A
Housing Color
Black
Cap Type
No Cap or Cover
Grounding
Grounded
Resistance Properties
Chemical Resistant, Impact Resistant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PS5369X
- Zoro #
- G422784196
- UPC #
- 785007237030
- Country of Origin
- Mexico
- Current Rating
- 20 A
- Housing Color
- Black
- Cap Type
- No Cap or Cover
- Grounding
- Grounded
- Resistance Properties
- Chemical Resistant, Impact Resistant
- UL 94 Flammability Rating
- V-2
- Maximum Operating Temperature
- 75 Degrees C
- Wire Connection Type
- Screw Terminals
- Contact Material
- Brass
- Item
- Straight Blade Connector
- Voltage Rating
- 125V AC
- Number of Poles
- 2
- Minimum Operating Temperature
- -40 Degrees C
- Grade
- Federal Specification
- NEMA Receptacle Configuration
- 5-20R
- Horsepower Rating
- 1 hp
- Standards
- UL 498
- Shrouded
- No
- Number of Wires
- 3
- IP Rating
- Not Rated
- Power Indicating Light
- No
- Market
- Industrial
- Housing Material
- Nylon
- Connection Orientation
- Straight
Description
Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Resistance Properties Chemical Resistant, Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.69 in, For Minimum Cable Diameter 0.23 in, Grade Federal Specification, Grounding Grounded, Horsepower Rating 1 hp, Housing Material Nylon
