This item is Discontinued.

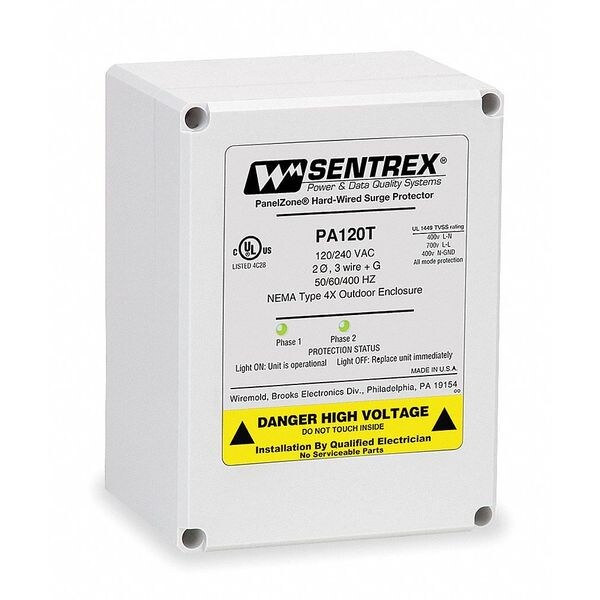

Legrand Surge Protection Device, 1 Phase, 120/240VAC, 2 Poles, 4 PA120T

Surge Protection Device, 1 Phase, 120/240VAC, 2 Poles, 4 (Discontinued)

  • Mfr # PA120T
  • Zoro # G1986187
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PA120T
Zoro #
G1986187
UPC #
786776005813
Country of Origin
United States

Dimensions

Length
6.31"
Depth
3.56"
Width
4.75"
Length (Straight Wireway)
6.31 in

Details

Item
Surge Protection Device
Mounting Style
Surface
Phase
1
Voltage
120/240VAC
Number of Poles
2
Voltage Protection Rating
700V (N-G), 800V (L-N), 1200V (L-G), 1500V (L-L)
Number of Wires
4
Modes of Protection
L-G, L-L, L-N, N-G
Max. Surge Current per Mode
160kA
Max. Surge Current per Phase
80kA
Nominal Discharge Current
10kA
Short Circuit Current Rating
5kA
Modular
No
Filtering
No
Max. Continuing Operating Voltage
150/300 V AC
Enclosure NEMA Rating
4X
Enclosure Material
Plastic
Includes
Protection Status Indicator, Short Circuit and Thermal Fusing
Joules
810
Standards
UL1449, CSA C22.2 No. 8
Modular / Nonmodular
Nonmodular
Filtering / Nonfiltering
Nonfiltering

Description

Surge Protection Device, Depth 3.56 in, Enclosure Material Plastic, Enclosure NEMA Rating 4X, Joules 810
