Shop LEGRAND

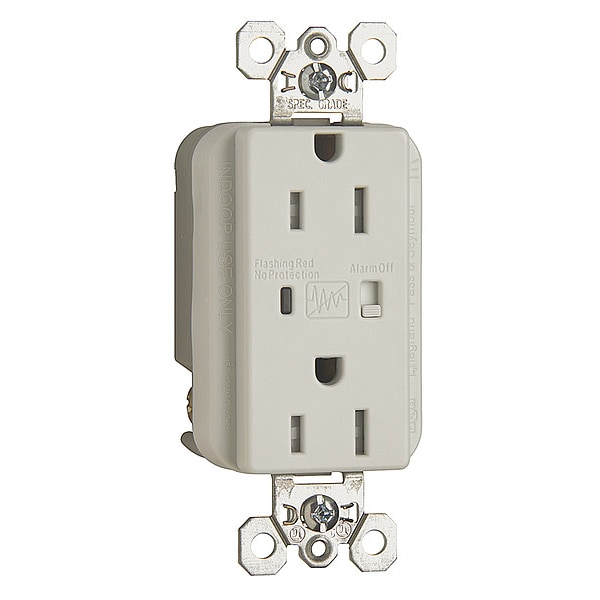

Tamper Resistant Extra Heavy Duty Surge Protective Duplex Receptacle, Number of Gangs: 1 Nylon

  • Mfr # TR5262WSP

  • Zoro # G7334017

product price:  $101.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Color
White
Material
Nylon
Size
3.82"H x 1-3/4"Wx 1.225"D
Weather Resistant
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TR5262WSP
Zoro #
G7334017
UPC #
00785007019261
Country of Origin
China

Dimensions

Size
3.82"H x 1-3/4"Wx 1.225"D
Face Plate Height
2.8 in
Face Plate Width
1.7 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.8 in
Mount Hole Center-to-Center Width
0.9 in

Details

Item
Tamper Resistant Extra Heavy Duty Surge Protective Duplex Receptacle
Number of Gangs
1
Color
White
Material
Nylon
Weather Resistant
No
Tamper Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Number of Wires
3
Item - Plugs and Receptacles
Receptacle
Application Environment
General Purpose
Color - Plugs and Receptacles
White
Mounting Type
Surface
Corrosion Resistant
No
Power Indicator
Yes
Mounting Type - Plugs and Receptacles
Surface
Wiring Method - Plugs and Receptacles
Back
Voltage - Plugs and Receptacles
125V AC
Outlet Type
Decorator
Amps
15
Number of Poles
2
Outlet Type - Plugs and Receptacles
Decorator Duplex
Standards
cULus Listed
Wiring Method
Back/Side
Special Features
Audible Alarm with LED Indicator
Amps - Plugs and Receptacles
15 A
Surge Suppression
Yes
Voltage
125VAC
Weather Resistant - Plugs and Receptacles
No
Includes Mounting Hardware
Yes
Mount Type
Surface
NEMA Receptacle Configuration
5-15R
Resistance Properties
Corrosion Resistant, Tamper Resistant
Minimum Operating Temperature
-4 Degrees F
Receptacle Type
Duplex
Housing Material
Nylon
Grade
General Use
Surge Protection
Yes
Current Rating
15 A
Maximum Surge Current
24 kA
Housing Color
White
UL 94 Flammability Rating
V-2
Voltage Rating
125V AC
Connection Orientation
Straight
Includes
Auto-Ground Clip, Mounting Hardware
Contact Material
Brass
For Location
Indoor
Visual Indicator Lights
Power Connected, No Longer Protected/No Reset
Phase
Single
Market
Commercial, Residential
Grounding
Grounded
Maximum Operating Temperature
131 Degrees F
Wire Connection Type
Screw Terminals
Connection
Side & Back Wire
Environmental Conditions
UL94 V2
Type of Indicators
LED, Audible Alarm
Amperage
15 A
Frequency Rating
60 Hz
Application Sector
Residential/Commercial
Status Indicator Lights
Power Connected, No Longer Protected/No Reset
Shrouded
No
Number of Wall Plates Included
0
Flange Type
Non-Flanged
GFCI
No
Hub Type
Feed Through
AFCI
No
Cover Type
No Cover
IP Rating
Not Rated
Number of Outlets
2
Horsepower Rating
1/2 hp
Polarized
No
NEMA Enclosure Rating
5

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Surface, NEMA Enclosure Rating 5, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Duplex, Resistance Properties Corrosion Resistant, Tamper Resistant, Standards cULus Listed
