Shop LEGRAND

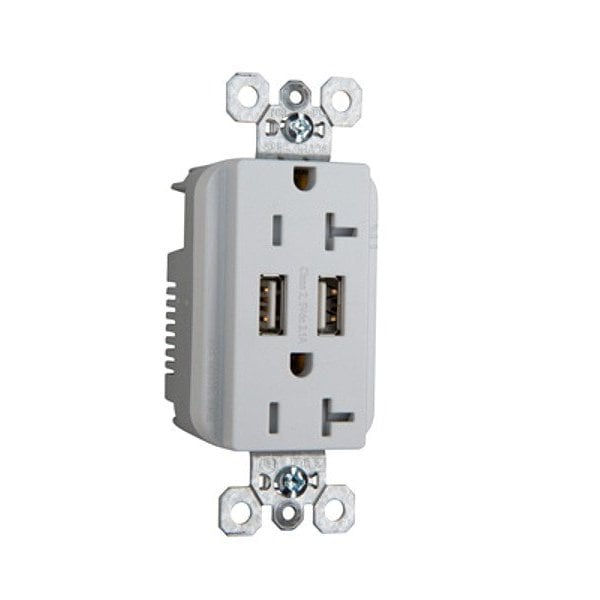

USBReceptacle, 20A, White, Thermoplastic

  • Mfr # TR5362USBW

  • Zoro # G722783776

product price:
$
44.19
/ea

Key Features

Overall Depth
1.39 in
Wire Connection Type
Screw Terminals
Grounding
Grounded
Contact Material
Brass
Wiring Method
Back/Side
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TR5362USBW
Zoro #
G722783776
UPC #
785007031669
Country of Origin
Viet Nam
Wire Connection Type
Screw Terminals
Item
USB Receptacle
Grounding
Grounded
Contact Material
Brass
Wiring Method
Back/Side
Number of Outlets
2
Market
Commercial
Standards
CSA Listed, cULus Listed, RoHS, UL Listed
Voltage Rating
125V AC
Minimum Operating Temperature
-40 Degrees C
Phase
Single
Number of Poles
2
Receptacle Type
Duplex
Current Rating
20 A
Number of Wires
3
Number of Wall Plates Included
0
Surge Protection
No
Housing Color
White
Mount Type
Flush
GFCI
No
USB Connection Type
A
UL 94 Flammability Rating
V-2
Resistance Properties
Tamper Resistant
Housing Material
Thermoplastic
NEMA Receptacle Configuration
5-20R
Grade
Federal Specification
Maximum Operating Temperature
60 Degrees C

Description

USB Receptacle, Current Rating 20 A, Housing Color White, Number of Outlets 2, Number of USB Ports 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, GFCI No, Grade Federal Specification, Grounding Grounded, Horsepower Rating Not Applicable, Housing Material Thermoplastic, IP Rating Not Applicable, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG
